Introduction
The side brush is responsible for cleaning the baseboard or the sides of objects it encounters.
Tools
-
-

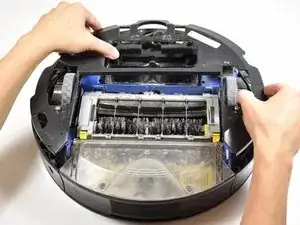

Flip the Roomba over so that the wheels are facing up and the dust tray is closest to you.
-
Using the J1 Phillips screwdriver, locate and unscrew the two 11mm phillips screws above the brushes on the battery panel.
-
Remove the plastic plate from the battery box.
-
-
-
Locate the 2 green tabs on the left and right of the big yellow battery.
-
Grab the tabs with your hands and lift straight upward.
-
-
-
Using the J1 Philips Screwdriver, remove the 15.5 mm screw located in the center of the side brush.
-
Remove the brush by pulling upwards.
-
-
-
Using the J1 Philips Screwdriver, remove the two 15.5 mm screws located on the bottom of the plate covering the bottom of the roomba.
-
Lift upwards to remove the bottom plate.
-
-
-

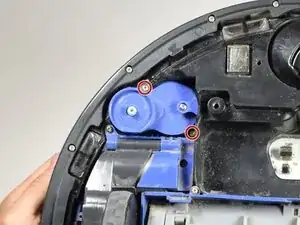

Using the J1 Philips Screwdriver, remove the two gold 15.5 mm screws located on the blue plastic module the side brush had previously been attached too.
-

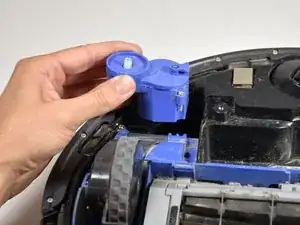

Lift the blue module upwards. The module contains the motor for the side brush.
-
To reassemble your device, follow these instructions in reverse order.
