iRobot Roomba 860 Battery Replacement

Written By: Ryan Murphy
  • Comments: 0
iRobot Roomba 860 Battery Replacement

Difficulty

Easy

Steps

3

Time Required

5 minutes

Introduction

If your iRobot Roomba 860 Battery needs replacement or to safely further disassemble this product, this guide can help

  1. 4QIO2E2GUNgAAEMU

    • Start by powering down the device to remove the battery from the iRobot Roomba 860.

  2. kZh1tSHDuMAaBJjp
    kZh1tSHDuMAaBJjp
    RZSWtDsEOU4wVUND

    • Flip the Roomba over so that the underside is facing up.

    • Locate the battery panel and the 2 - 7 mm Phillips #2 Point Screws.

    • Using a Phillips #2 Point Screwdriver, remove the screws and use your fingers to pull the cover away from the device.

  3. QJ5ROEOgFKCAFXMi
    QJ5ROEOgFKCAFXMi
    TqTKIeCiAfrBP1nh

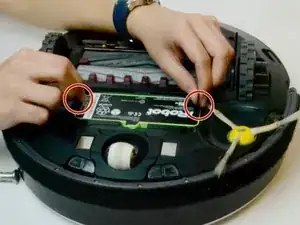

    • Locate the two fabric tabs on the side of the battery.

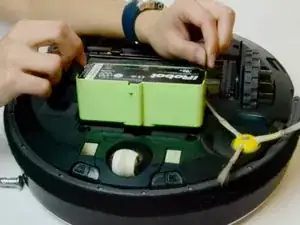

    • Pull up on the tabs to easily remove the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
