the Nokia 6230b Camera Replacement

Written By: Job Jao
  • Comments: 0
the Nokia 6230b Camera Replacement

Difficulty

Moderate

Steps

16

Time Required

5 minutes

Introduction

The camera is attached to the motherboard in your phone. A T6 screwdriver is needed to access the camera.

  1. KvCstoc5PSY4KYDW

    • Press down the button on the back panel.

  2. SuOKhNVMjwj4tnqU
    SuOKhNVMjwj4tnqU
    QQ2eEaZCyZVZSt65

    • Push the back cover upwards.

  3. HRhBKrOPIv12FODk
    HRhBKrOPIv12FODk
    i1wTFKAEDYMoGGtQ

    • Remove the back cover from the phone.

  4. hxSKqlqxLwfkufIv

    • Press the silver button on the top of the phone.

  5. T6LwrgFDTMQy1Hqf

    • Slide your thumbnail down the case seam to separate the rest of the case.

  6. AAZdv5ZZbDFjfLUm

    • Gently remove the case.

    • Careful! Do not bend the plastic tabs.

  7. mRjn1VUVZaK4RAvg
    mRjn1VUVZaK4RAvg
    KxCHqwxWUh1HNjN3

    • Using a T6 Torx Screwdriver, unscrew and remove the six screws shown in the picture.

  8. VL3VOxonCmQQPOCK
    VL3VOxonCmQQPOCK
    GMOoXA3fVJcDRU3k

    • Remove the panel that covers the motherboard.

    • If replacing the speaker, stop at this step and skip forward to the first step of the speaker guide.

  9. baohAGD1BR5Kk15E

    • Remove the LCD screen frame.

  10. MLlNGZFdAwGCUvbv

    • Remove the motherboard.

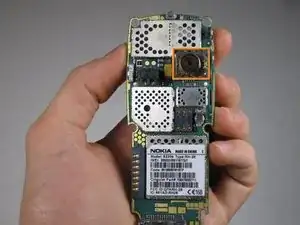

  11. tfWZXJGoSByLW4Gh

    • Locate the camera on the circuit board.

  12. oTcy6fLKQEmvioSj

    • Place the circuit board on a firm, static free surface (no cloth/carpet).

    • NOTE: The circled alignment notch points to the left.

  13. NHYiymqlJc16yucY

    • Pull the left holding tabs to the left.

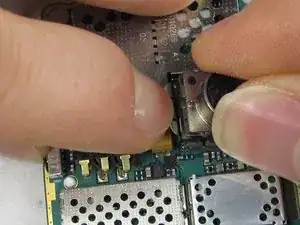

  14. Tml1XlNZMv4MaUX6

    • Lift out the left side of the camera.

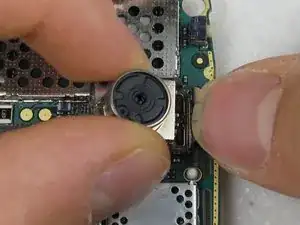

  15. BEko2UpZTFlqxVMw

    • Pull the right holding tabs to the right.

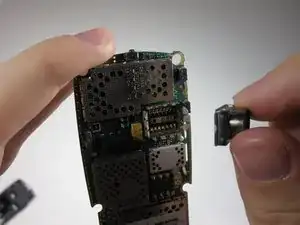

  16. RpMGSlqQqXeug2VE

    • Pull camera off of board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
