the Nokia 6230b Speaker Replacement

Written By: Job Jao
  • Comments: 0
the Nokia 6230b Speaker Replacement

Difficulty

Moderate

Steps

13

Time Required

5 minutes

Introduction

The speaker is located inside the phone underneath the front cover. A T6 screwdriver is needed to access the speaker.

  1. KvCstoc5PSY4KYDW

    • Press down the button on the back panel.

  2. SuOKhNVMjwj4tnqU
    SuOKhNVMjwj4tnqU
    QQ2eEaZCyZVZSt65

    • Push the back cover upwards.

  3. HRhBKrOPIv12FODk
    HRhBKrOPIv12FODk
    i1wTFKAEDYMoGGtQ

    • Remove the back cover from the phone.

  4. hxSKqlqxLwfkufIv

    • Press the silver button on the top of the phone.

  5. T6LwrgFDTMQy1Hqf

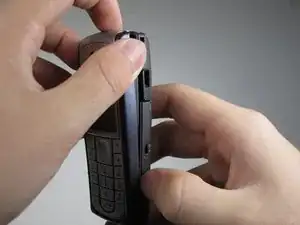

    • Slide your thumbnail down the case seam to separate the rest of the case.

  6. AAZdv5ZZbDFjfLUm

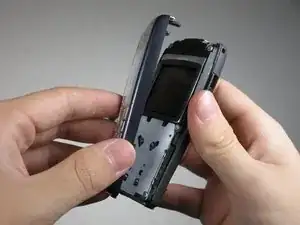

    • Gently remove the case.

    • Careful! Do not bend the plastic tabs.

  7. mRjn1VUVZaK4RAvg
    mRjn1VUVZaK4RAvg
    KxCHqwxWUh1HNjN3

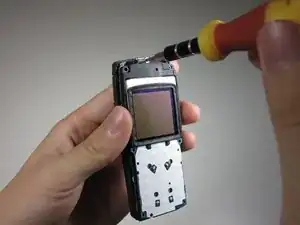

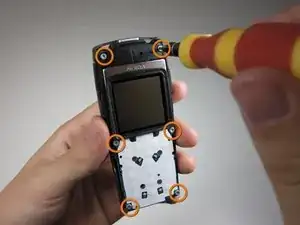

    • Using a T6 Torx Screwdriver, unscrew and remove the six screws shown in the picture.

  8. VL3VOxonCmQQPOCK
    VL3VOxonCmQQPOCK
    GMOoXA3fVJcDRU3k

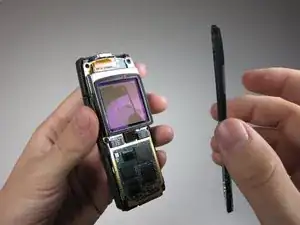

    • Remove the panel that covers the motherboard.

    • If replacing the speaker, stop at this step and skip forward to the first step of the speaker guide.

  9. baohAGD1BR5Kk15E

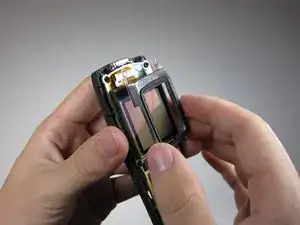

    • Remove the LCD screen frame.

  10. MLlNGZFdAwGCUvbv

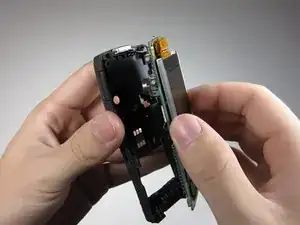

    • Remove the motherboard.

  11. EYnSJFOFNW4HVFRj

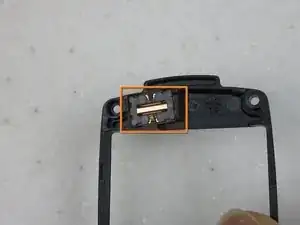

    • Locate the speaker on the back of the removed panel.

  12. wUhXcoDidBttYpvx

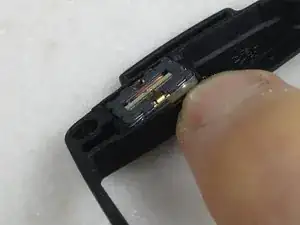

    • Use nails to gently lift the speaker up; speaker may be slightly glued to the panel.

  13. KNPWSpmDMotX1s4K

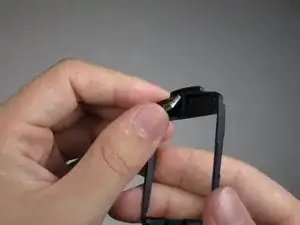

    • When the speaker is loose, gently lift the speaker out of the panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
