Introduction
The keyboard is a vital component to the function of the unit. This guide will show to remove and replace the keyboard. Take care not to damage the keyboard when removed.
Tools
-

                  -
            Flip the device over.
-

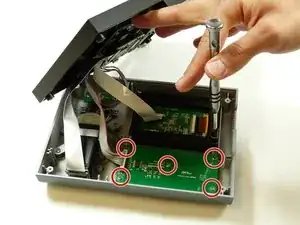

            Remove the four 10mm PH #2 screws by rotating the screwdriver counterclockwise, removing the screw from the housing completely.

-

-

                  -
            Separate the two cover pieces carefully by pulling apart the two cover pieces away from each other.

-

-

                  -

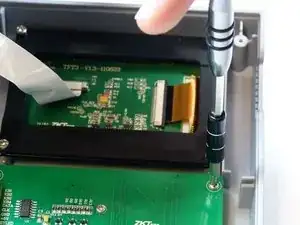

            Remove the five 7mm PH #1 screws from the back of the keypad, by rotating the screw driver counter clockwise, removing the screw from the housing completely.

-

-

                  -

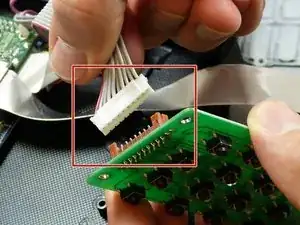

            Remove the bundled cable connector from the keyboard by pulling the cable away from the connector in the same direction as the individual wires are running.

-

To reassemble your device, follow these instructions in reverse order.
