Clevo Sager Eurocom P650RG G Teardown

Written By: Larry Chen
Published: 30/10/16
  • Comments: 0

Clevo Sager Eurocom P650RG G Teardown

Published: 30/10/16

Teardown

Introduction

  1. iyaYJPMrG3ucVISp

    • Not a full teardown; just board photos (both sides) and things that I couldn't find on the Internet easily.

  2. GbjomSfyOZTLp6td

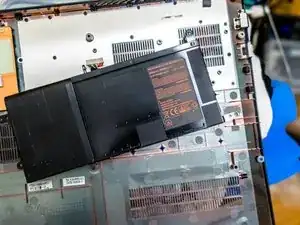

    • Internal battery, 60Wh

  3. cGNEoUQPR1irNYfx
    cGNEoUQPR1irNYfx
    FNXXSfrARe2SKHRR

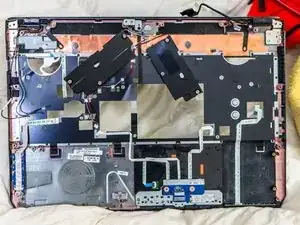

    • Top assembly. Screen is attached to top case.

    • The two 2W speakers are quite large and sound fairly nice, surprisingly. Doesn't look like they're ported enclosures.

  4. CjG2AUnOqm5YeekO

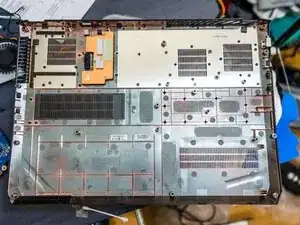

    • The copper heatsink is screwed onto the bottom cover. The CPU fan draws air through this area (not a lot though).

    • Copper heatsink with heat pads for the CPU and GPU voltage regulator MOSFET/inductors. During reassembly, make sure no wires cover the MOSFETs

  5. sHEZpM2oDWGwcQlx
    sHEZpM2oDWGwcQlx
    XDNg3TKy5lA5Y3Sh
    sZhFWgCN3xoZUqWQ

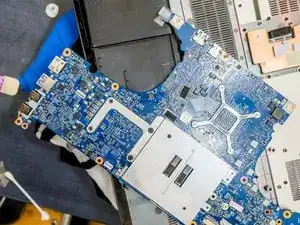

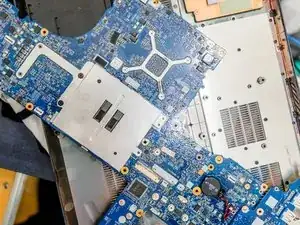

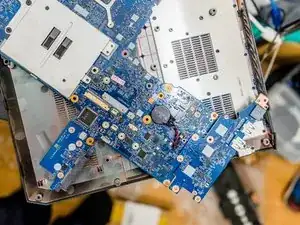

    • Board Photos bottom side

  6. MSPRqFCQBN2LmiY1
    MSPRqFCQBN2LmiY1
    VANlUirVjiDjXTlg
    KuBDmIwb1eGZBSQY

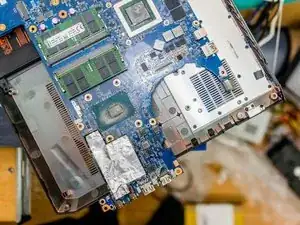

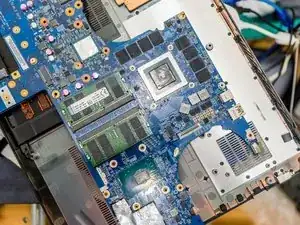

    • Intel Core i7-6820HQ, DDR4 RAM, GTX980M can be seen here.
