Digital MP3 Player HDMP3 (128 MB) Teardown

Written By: Arthur Lutz
Published: 04/04/11
  • Comments: 0

Digital MP3 Player HDMP3 (128 MB) Teardown

Published: 04/04/11

Teardown

Introduction

Disassembly to try and salvage some parts.

  1. XyMBDebGTpLhp4eM

    • Original device

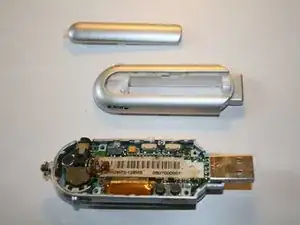

  2. XVQAk4FspuKGoXj6

    • Remove the back cover.

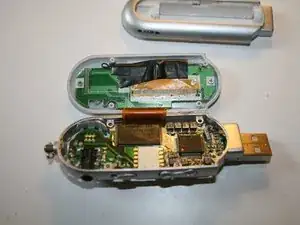

  3. WJZsdgH2BtlvirLJ

    • Unscrew the small screws and it unfolds into two boards.

    • Two chips visible : hynix KOR HY27UF08G2M TCB 528A, ATJ2085

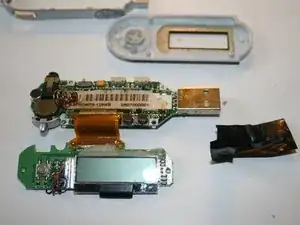

  4. axjT2vfXogYtmPwl
    axjT2vfXogYtmPwl
    kOTTD1xAfylnEisW

    • Remove casing and remove plastic protection.
