Introduction
Tools
-

                  -
            The front plate is attached to the bottom with 3 clips.
-

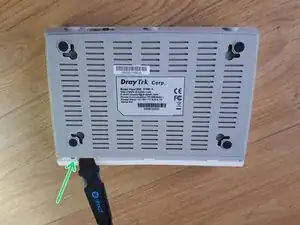

            Using a flathead screwdriver, pry open the first clip.
-
            Use a flat object to hold the first clip open.
-

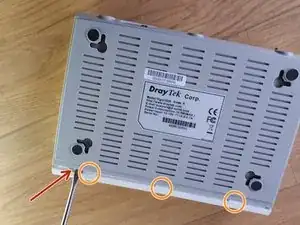

            Use the flathead to open the remaining clips.

-

-

                  -

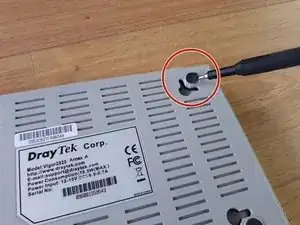

            With the 2.5mm flathead, remove the rubber feet.
-

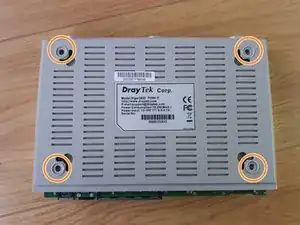

            Unscrew the 4 screws holding the top and bottom parts of the case together.

-

-

                  -

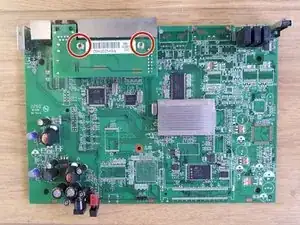

            Unscrew the screws attaching the ADSL module to the mainboard.
-

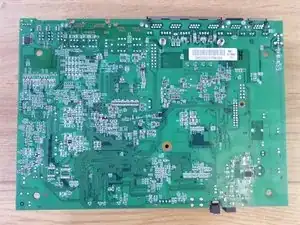

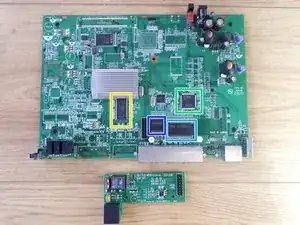

            The mainboard:
-
            Nanya Technology NT5DS16M16CS-5T 256Mb DDR SDRAM
-
            Infineon Technologies PSB 6972 HL V1.2 Ethernet Switch Controller
-
            Delta Electronics LFE8731
-
            Delta Electronics LFE9208A

-
