Introduction
Full teardown of a cordless phone and accessories from 2001.
Tools
-

                  -

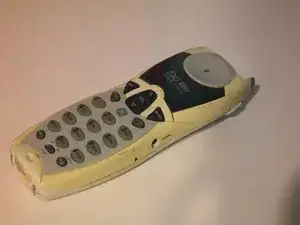

            This is a teardown of a GE 27990G3 cordless phone system from 2001. Sadly, while it still works, its 2.4 GHz wireless transmitter interferes with WiFi.

-

-

                  -

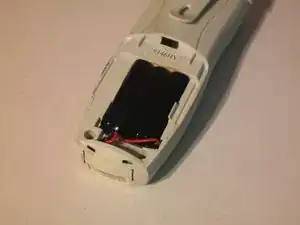

            Use needlenose pliers to disconnect the battery connector.
-

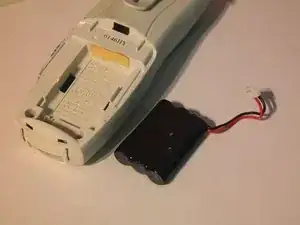

            The battery is a 3.6V Nickel-Cadmium rechargeable battery made up of 3 AAA-sized cells

-

-

                  -

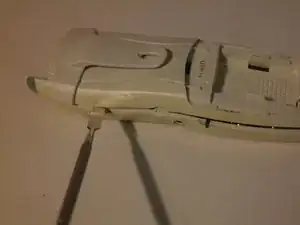

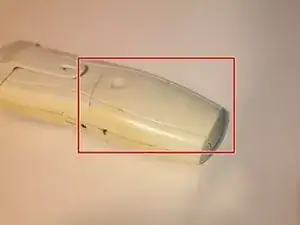

            After some aggressive spudgering (the pictures make it look much easier), the back of the case can be removed.

-

-

                  -

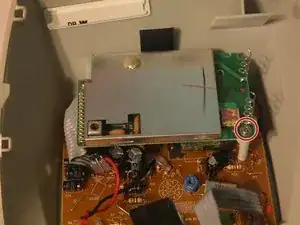

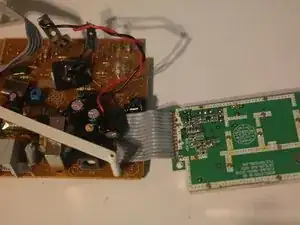

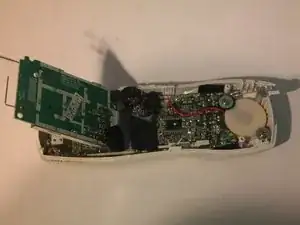

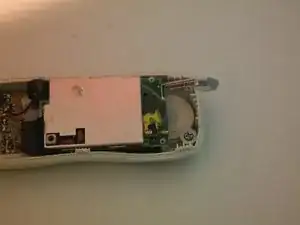

            The wireless board can be flipped up, but is still attached to the main board by a short ribbon cable.
-

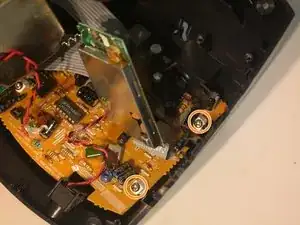

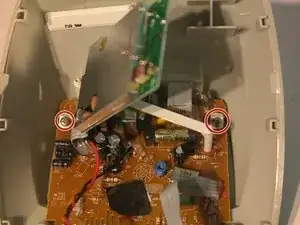

            Remove 2 screws on the main board.
-

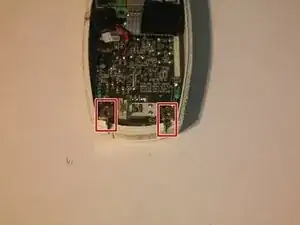

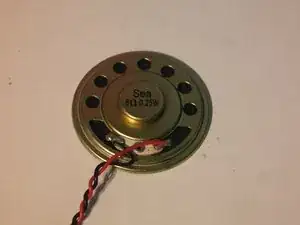

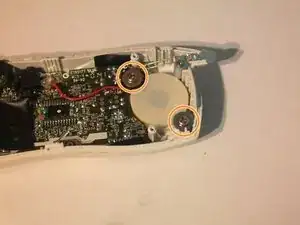

            Remove 2 screws on the speaker.

-

-

                  -

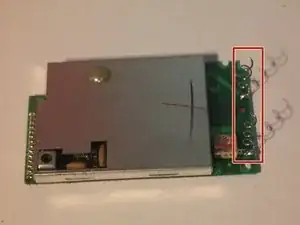

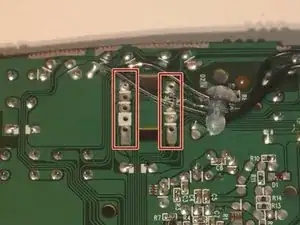

            The wireless board is attached by a soldered and hot-glued in ribbon cable, which must be cut off to remove.

-

-

                  -

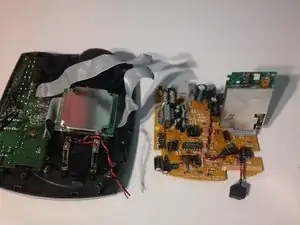

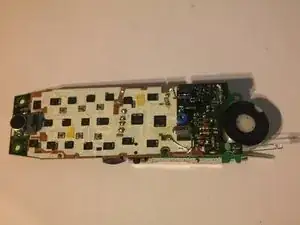

            Components on the main board:
-
            Speaker
-
            Message indicator LED
-
            Ringer switch
-
            Electret microphone
-
            Unknown potted 'Blob' IC
-
            Piezo buzzer for ringer

-

-

                  -
            Whoever designed the wireless module really didn't want anyone to know what was inside. The very thick EMI shield is soldered, crimped, and epoxied on.
-
            The shield took about 20 minutes to remove with diagonal cutters, 2 pairs of pliers, and 3 metal spudgers.
-
            Needless to say, the shield is irreversibly damaged and the wireless module will probably never work again.

-

-

                  -

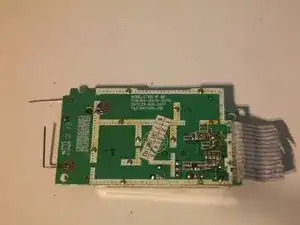

            Components inside the wireless module:
-
            Toshiba TB31261AF cordless telephone RF chip
-
            Ceramic resonators
-
            Unidentified square ceramic components with 2 cylindrical holes in them horizontally (anyone who has an idea what they are, please comment.)
-

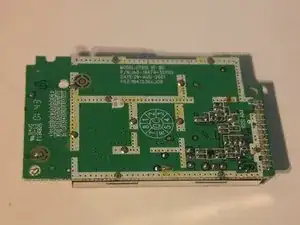

            The back of the board says that it was manufactured on August 29, 2001, making the phone 14 years old at the time of writing.
-
            Interestingly, the Toshiba TB31261AF is designed for a 900MHz cordless telephone, but this is a 2.4GHz model.

-

-

                  -

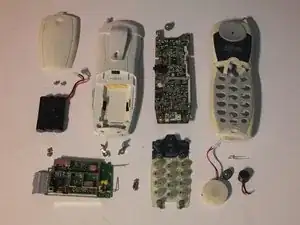

            Repairability score: 6/10
-
            Phone is held together with only phillips screws.
-
            Battery, the most likely part to fail, is a standard component and is easily replaceable.
-
            Case is difficult to open.
-
            Wireless module is very hard to replace and impossible to repair.
-
            All wires (except for the battery) are soldered to the circuit board instead of using connectors.

-

-

                  -

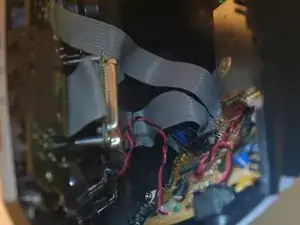

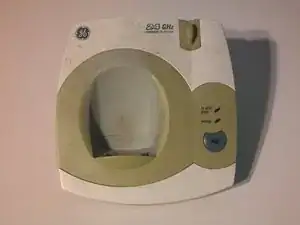

            Just like in the handset, the wireless module is connected to the main board with a soldered ribbon cable. I'm sensing a theme here.
-

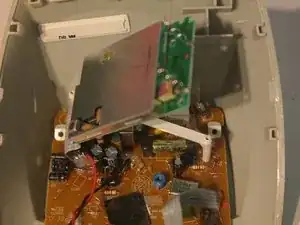

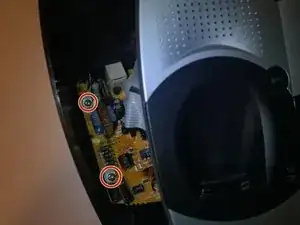

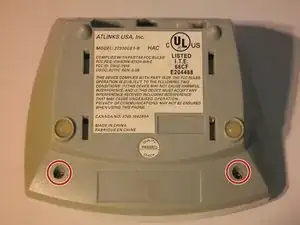

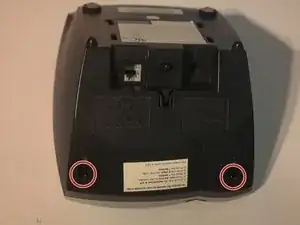

            Remove 2 screws that hold down the main board.

-

-

                  -
            The main circuit board can be removed from the bottom case.
-

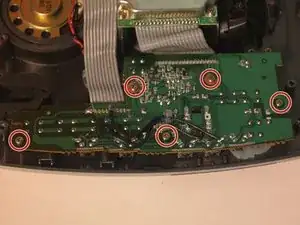

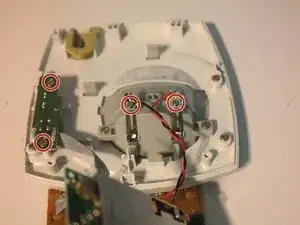

            Remove 4 screws holding in the button board and charging contacts from the top case.

-

-

                  -
            The wireless module can be cut away from the logic board.
-

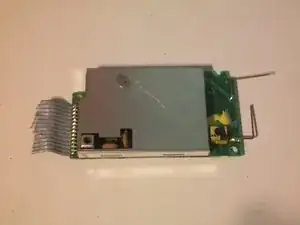

            This wireless module is identical to the one in the handset except for the fact that it used coiled wires instead of straight wires for antennas.

-

-

                  -
            Remove 2 screws to remove the support for the wireless module.
-
            The plastic pieces used to hold down the board can also be removed.

-

-

                  -

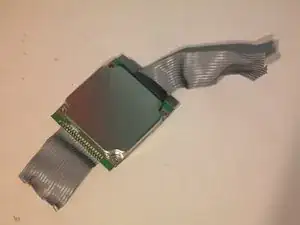

            The button board contains a lonely button, 2 LEDs, and is connected with a soldered ribbon cable reinforced with hot glue.
-
            This board appears to have been manufactured on April 17, 2001.

-

-

                  -

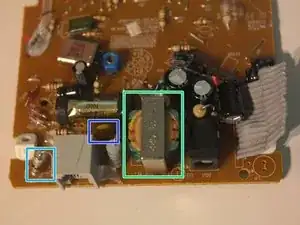

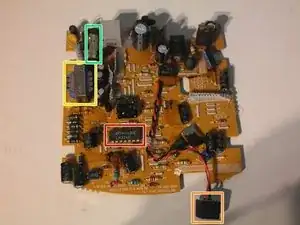

            Components on the main board:
-
            4 MHz crystal
-

-
            Variable capacitor
-
            Small audio transformer
-
            Miniature fuse
-
            Varistor for surge protection
-
            This board was manufactured on September 3, 2001.

-

-

                  -
            Repairability Score: 4/10
-
            Secondary base station is assembled with only phillips screws.
-
            Circuit boards use mainly through-hole parts, so repair of individual components is easier.
-
            Case requires lots of spudgering to open.
-
            Removing the board requires a long screwdriver.
-
            Wireless module is very hard to replace and impossible to repair.
-
            All wires and ribbon cables are soldered to the board and reinforced with hot glue.

-

-

                  -

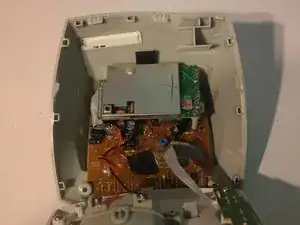

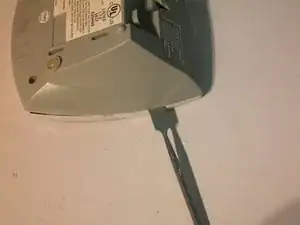

            The case for the main base station can be opened, but it requires 2 spudgers and much more force than the other one.
-
            Remember how I said soldered ribbon cables were becoming a theme here? I was right.

-

-

                  -
            Remove 2 screws holding down the wireless module.
-
            Remove 2 more screws holding down the plastic pieces attached to the circuit board.

-

-

                  -
            Remove another 2 screws on the other side of the board.
-
            Remove the microphone from its holder.

-

-

                  -
            In order to remove the board from the bottom case, you have to carefully reach in and free each one of the plastic pieces attached to the board from a clip on the bottom case.
-

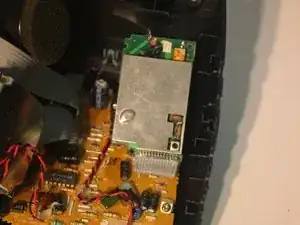

            All of the cables to the main board can now be cut and the wireless module can be cut off of the main board.

-

-

                  -
            The main board in the base station has patches of an unknown yellowish-brown substance on it that appears to be some kind of weak adhesive, and it seems to be scattered in no obvious pattern.

-

-

                  -
            Remove 3 screws to remove the speaker cover.
-
            This speaker cover appears to have been designed to accomodate both a low-profile speaker and a speaker with a larger magnet on the back.

-

-

                  -

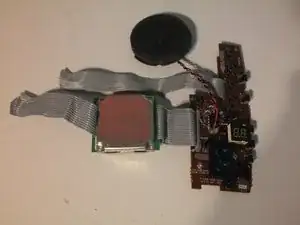

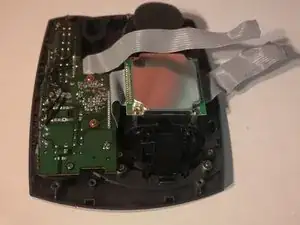

            The entire top case assembly can be removed from the printer after using a spudger to free the large buttons from clips in the top case.

-

-

                  -
            So what is inside the mysterious metal box?
-
            Samsung K9F4008W0A-TCB0 512x8 Kb (512 KB) flash memory (designed for digital audio recording)
-
            Crystal oscillator, covered in the same unusual substance found on the main board.
-
            Unknown IC D16529CAC11CQC. Googling it turns up nothing that makes any sense.
-
            This board is probably where the messages are stored.

-

-

                  -

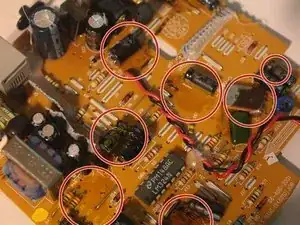

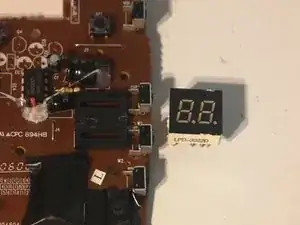

            All of the boards in this phone system have terrible solder quality. I was able to cleanly remove the 7-segment display, about 20 capacitors, 3 voltage regulators, 1 transformer, and 2 crystal oscillators without damaging them using needle nose pliers.

-

-

                  -
            Repairability Score: 3/10
-
            Base station is only held together with phillips screws.
-
            Circuit boards use mainly through-hole parts, so repair of individual components is easier.
-
            Removing the top circuit board is difficult because the buttons are attached to the top case with clips.
-
            Opening the case requires 2 metal spudgers and a lot of force.
-
            Removing the bottom circuit board is difficult because the case is still attached with soldered ribbon cables.
-
            Wireless module is very hard to replace and impossible to repair.
-
            All wires and ribbon cables are soldered to the board and reinforced with hot glue.

-

-

                  -
            Overall repairability score: 5/10
-
            The handset battery, the most likely part to fail, is a standard component and is easily replaceable.
-
            Circuit boards use mainly through-hole parts, so repair of individual components is easier.
-
            Entire phone is held together with phillips screws
-
            Cases are difficult to open and require heavy spudgering.
-
            Most parts were not designed to be repaired.
-
            All wires and ribbon cables are soldered to the board and reinforced with hot glue.

-
