Introduction

A look inside the Google Pixel Buds 2

  1. WOZw4gwIBjZFfLu6
    WOZw4gwIBjZFfLu6
    TtBSZfuhDZLJALZh
    Tg36mDOFi6fMbZox

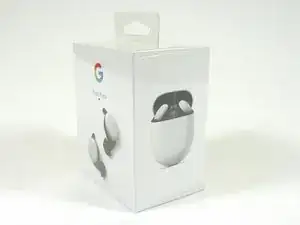

    • Features:

    • Sweat and Water Resistant

    • Bluetooth® 5.0

    • Spatial vent for in-ear pressure reduction and spatial awareness

    • Dual beamforming microphones / Voice detecting accelerometer

    • Up to 5 hours of listening time and up to 2.5 hours of talk time

    • Capacitive touch sensors / Dual IR proximity sensors

  2. ALUgRYehC4G2iNuO
    ALUgRYehC4G2iNuO
    CvjcR6DojTJCSmPN

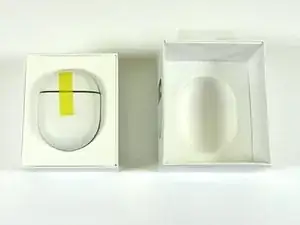

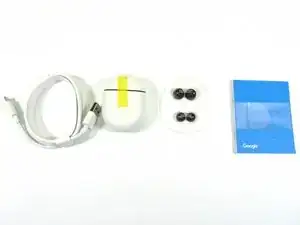

    • What is in the box:

    • Buds Carrying / Charging Case

    • USB 'C' Cable

    • Ear bud rubber tips for different sizes of ears

    • User's Manual

  3. fyuVmWDNXa2fVOmo
    fyuVmWDNXa2fVOmo
    ooAx1rZxNdGhBYyy
    xJAGA3INA3LECsME

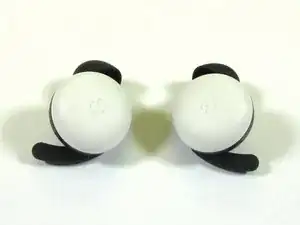

    • Open the Google Pixel Buds Charging / Carrier case to locate the Buds

    • Once the Google Pixel Buds have been removed, and we can get a closer look at the Buds.

  4. Nc54FAD3rGBudJfo
    Nc54FAD3rGBudJfo
    qr5ttuyFehnggwWW
    E23Xhi3uR5IKTRf4

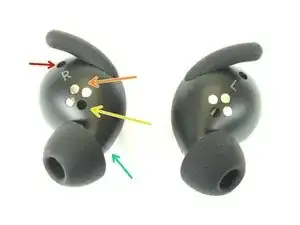

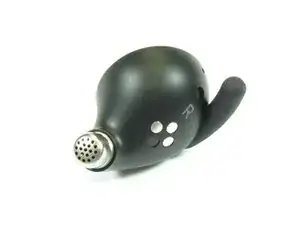

    • Back View of the Buds

    • Spatial Vent

    • Connectors for Charging the Battery when in the carrier / charging case

    • IR Detector for detecting when the buds are in the charging case or in the ear

    • IR Detector for detecting when the bud is in the ear

    • Grounded Metal Grid sound chamber cover

    • Closeup view of the Grounded Metal Grid

  5. SIecuOQ5nAGoC62Z
    SIecuOQ5nAGoC62Z
    bWgwaFIt4FFlItXI
    EiTalclZFjPGAFBf

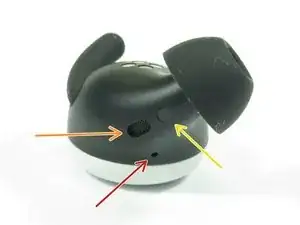

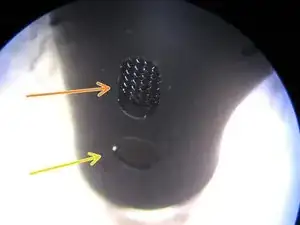

    • Microphone port. One on each side, and opposite one another.

    • Spatial vent / grounded mesh

    • IR Detector for in ear detection

  6. 14DyH1WLSGZ4P54t
    14DyH1WLSGZ4P54t
    bQHGhNifU5bYxgDg
    tFR1tiTmLHPOILK6

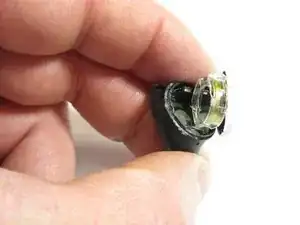

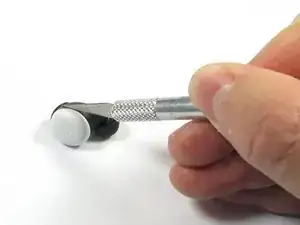

    • Since the Google Pixel Buds are made of plastic and are glued together, the only way in was to cut into the Google Pixel Bud. This is a destructive teardown

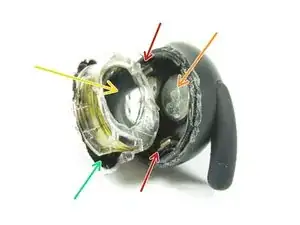

    • Once in, we are able to get our first look at the Google Pixel Bud's electronics. The stack up the Google Pixel Bud is as follows:

    • Touch Sensor

    • Main Circuit board

    • Battery

    • Speaker

    • Microphones

    • Charging and in Ear IR Detectors (not shown)

  7. pFkL1QGKGeYofoFK
    pFkL1QGKGeYofoFK
    eoCAVnK51ltM35U4
    6cYMUw11EtEU5PRN

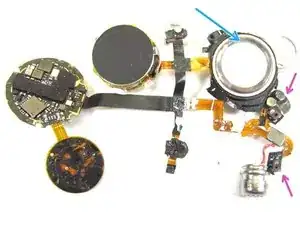

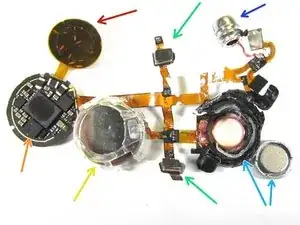

    • View of the electronics when removed from the Google Pixel Bud Enclosure

    • Flex PCB based Touch Sensor

    • Main PCB. Contains MCU, Bluetooth Radio, Audio Processing, Power Management, and Sensors

    • Battery

    • MEMS Microphones

    • Speaker Coil, Speaker Magnet, and Speak Diaphragm.

    • Grounded metal grid sound channel cover

    • IR Detector for in ear detections

  8. I2BJZJcSKXbX4MPg

    • Closeup view of the Touch Sensor Flex PCB

  9. JGKJO1fnO3ahbvrM
    JGKJO1fnO3ahbvrM
    oPiDh4O1YZLJCOj2

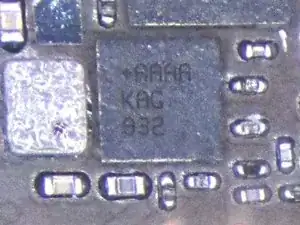

    Well, it is definitely not the MAX98502 - you just don't need a 2.2W output to the earbud from a battery-operated device ) It might be something headphones-oriented, for example MAX9723

    Alexander Kovalevsky -

  10. FDaZoUCQMZTwJuYI
    FDaZoUCQMZTwJuYI
    E5yIKdCyBKlJmOIK
    SbMpHMSnSQlUZWsM

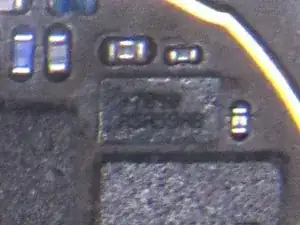

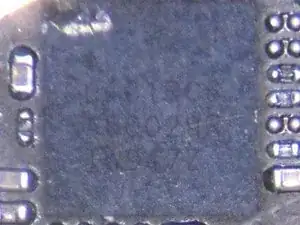

    Any one has idea how this MCU works for ?

    Chiawei Hsu -

  11. PnLddXjvYHWWDvH2
    PnLddXjvYHWWDvH2
    fcChDuwN3mZYZCpB

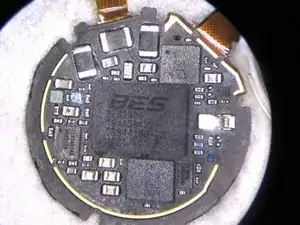

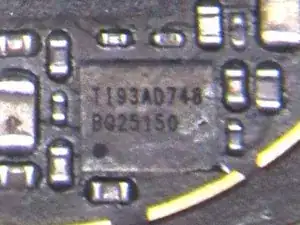

    • Closeup view of the top side of the Main PCB

    • TI - BQ25150 - Battery Charge and Power Management

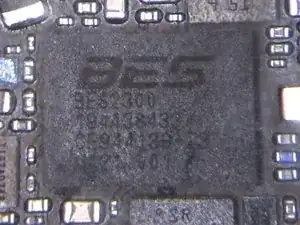

    • BES Technic - BES 2300 - Bluetooth Radio

    • Unknown Device - +7048/A5A59AB - May be the Accelerometer and Gyroscope used for voice detection. Please leave a comment if you know this device

    • Unknown Device - T 9 51 - Could be Flash Memory or RAM. Please leave a comment if you know this device

    • Unknown Device - SR 009 - Could be Flash Memory or RAM. Please leave a comment if you know this deviceNew line.

  12. oQeOCFVgRYKcPHQN
    oQeOCFVgRYKcPHQN
    2npsShhj1oYAnKUu
    Mv3KOJLvtOvFhF6D

  13. eNlRCmVN3u1uweuu
    eNlRCmVN3u1uweuu
    ZSwkoqP6swtNy5VR

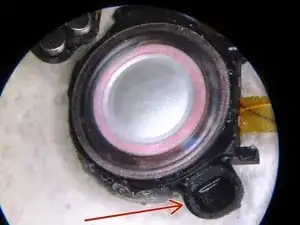

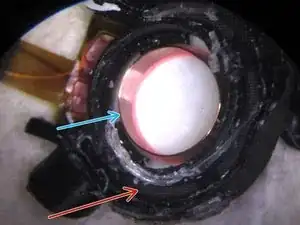

    • Closeup view of the speaker Diaphragm

    • Speaker Coil with Speaker magnet removed

    • Speaker is ported to increase bass. Port area wraps around the outside of the speaker

  14. NaaB1NUMCV3r1QJC

    • MEMS Microphone

    • Could not cross reference the Microphone Part Number, but it appears to be a Goertek Part. Please leave a comment if you happen to know this component

    I don’t know how much this helps, but I scanned the DataMatrix and it told me “G20093D180NRD10A”

    Jordi Pakey-Rodriguez -

  15. dOyHcjAZTnuucxdw

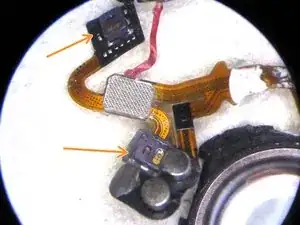

    • Closeup view of the IR Detectors. Could not cross reference part numbers to a manufacture. Please leave a comment if you happen to know this component

    • IR Detectors are used to detect when the Bud is in the ear or in the charger

  16. c4IyhlLb3tq4YQ3u

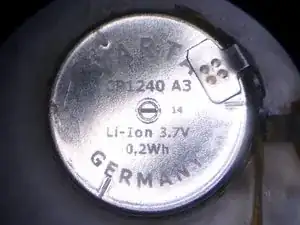

    • Closeup view of the Battery

    • Varta, CP1240 A3, Li-Ion 3.7V, 0.2Wh

  17. MIGQTwYJPGeIEQDs

    • Closeup view of the magnet that to holds the Bud in the charger. The magnet located is below the speaker in the sound chamber area

  18. NDBccJZbYXZGfc55

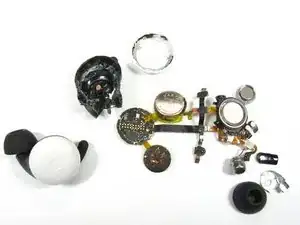

    • Teardown Exploded View of the Google Pixel Buds 2

    • Before and After
