Introduction
-

                  -

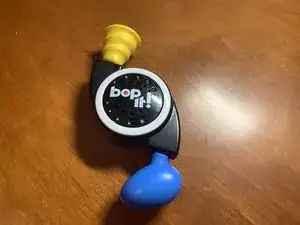

            Here's the Bop-It Toy! Compared to older versions of the game this one is more compact, thus allowing for more portability.

-

-

                  -

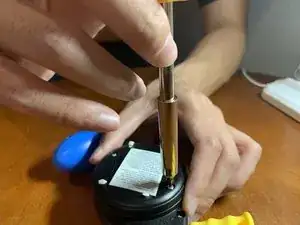

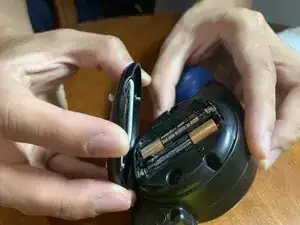

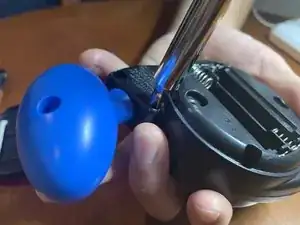

            Next we'll remove the batteries. Fortunately when purchasing the toy these batteries were included.

-

-

                  -
            Now we're ready to take apart the rest of the Bop-It toy.
-

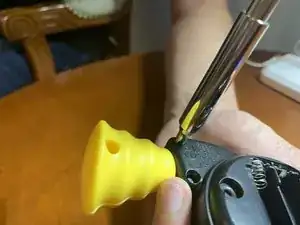

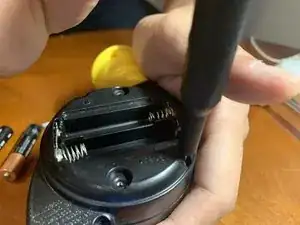

            For the two additional screws in the middle we needed to use a thinner, longer Phillips screwdriver to reach the screws.

-

-

                  -

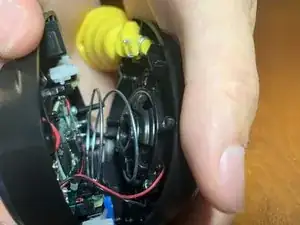

            When pulling both parts of the game apart, we made sure that no loose parts such as the spring shown fell off.

-

-

                  -

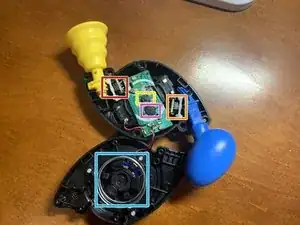

            With the Bop It opened up, we can see the different components that make the game work:
-
            The button used to detect a twist. Looks like instead of using a dedicated sensor to detect a twist, the toy connects the twist to a lever to push a button. Maybe this was done to save money, but this may not make the toy as durable.
-
            The button used to detect a pull. Like the twist part, this also uses a button instead of a dedicated sensor.
-
            The button that detects a bop. Since a bop is just a button press, this one doesn't need any additional fancy mechanical parts.
-
            The speaker. It looks like it has a spring over it that makes "bopping it" as fun as it is.
-
            The microcontroller. It's covered up by a glob top, so we can't actually tell what type of microcontroller it is unfortunately.

-

-

                  -

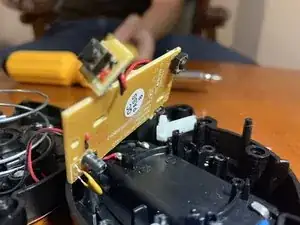

            Now let's see if there's anything else under the PCB.
-
            Unfortunately, there wasn't really much to see beside the reset button and a few capacitors.

-

-

                  -

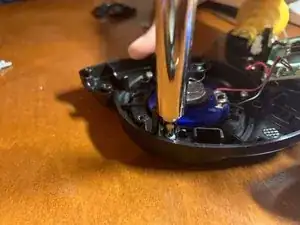

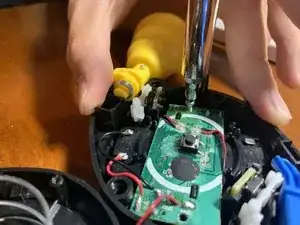

            Alright, just a few more screws to go.
-

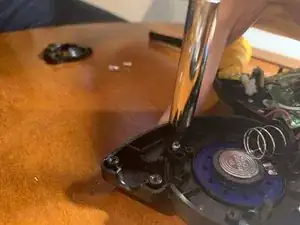

            Along with the speakers itself, we could also see another spring connected to it. This spring might be there to protect the speaker from any damage after "bopping it".

-
