Humax IRHD 5000C Teardown

Written By: knipwim
Published: 30/09/18
  • Comments: 2

Humax IRHD 5000C Teardown

Published: 30/09/18

Teardown

Introduction

This teardown will show you all removable components of the Humax IRHD 5000C and how to remove them.

  1. HAuJluwYdTFT2AEs
    HAuJluwYdTFT2AEs
    adACLZSVqI4FZVFU

    • Unscrew the screws on the outside.

    • Slide the top cover a bit to the back, and lift it from the enclosure.

  2. IWHgXFhyuyAFFQyn
    IWHgXFhyuyAFFQyn
    ptDskypWwVUudZhk

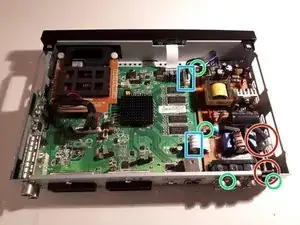

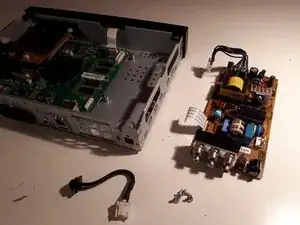

    • Remove the various pieces holding in the power supply.

    • Remove power cable (already cut of in the photo).

    • Unscrew screws.

    • Disconnect mainboard cables.

    • Remove the power supply from the enclosure.

  3. 5UoKnlPplUQ3bRqr
    5UoKnlPplUQ3bRqr
    wSDNahyNCyvRmyQq

    • Disconnect the cables connecting the mainboard to the front panel.

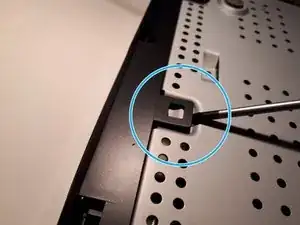

    • With a flathead screwdriver, unclip the 2 topside clips, and 3 clips on the bottom of the enclosure, and the front will detach.

  4. Mt1tjmhSmtaKG6Ha
    Mt1tjmhSmtaKG6Ha
    Vd4wjyDDhx1jB2cD
    6ZEoyZEiLIuGT4FH

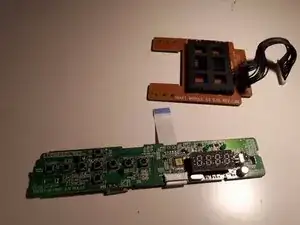

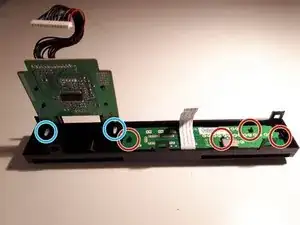

    • Unclip the 4 clips from left to right, and remove the panel.

    • With the pliers, clamp the white connector and push it through.

  5. DRBjNpueQLLRJLnG
    DRBjNpueQLLRJLnG
    y2ckGHyENCBRcaXV

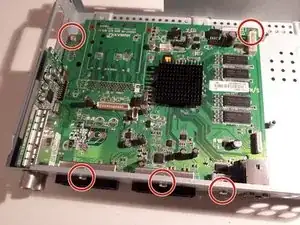

    • Unscrew the screws and remove the mainboard from the case.

Author

knipwim

Member since: 02/09/18

10058 Reputation

2 comments

What are those unsoldered pad connectors for? A hard drive?

Jessica Parnelli Fawkes -

Don’t know, could be a SCSI drive, there are 68 pins. I included a detail picture in the last step.
