Linksys WRT54G Teardown

Written By: Reed Crosby
Published: 23/12/16
  • Comments: 6

Linksys WRT54G Teardown

Published: 23/12/16

Teardown

Introduction

I will teach you how to dissemble this Router

  1. ZDxPbkQpGwnR5o6S
    ZDxPbkQpGwnR5o6S
    RtnfAMYDYl2yDkYN

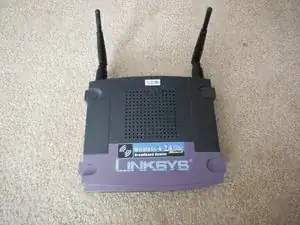

    • The Linksys WRT54G series is a series of Wi-Fi gateways manufactured by Linksys, a subsidiary of Cisco Systems.

  2. ClQrYuUZQK6XcKMO
    ClQrYuUZQK6XcKMO
    leeUYVUAGyagMfUI

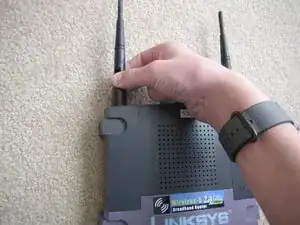

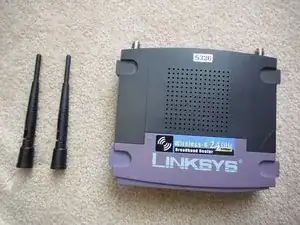

    • Let's begin with the teardown! First, unscrew the antennas from the back of the router and set them aside.

  3. dkYSRy6aUieEUpAO
    dkYSRy6aUieEUpAO
    TsZ4XNQ1oCmBaZBJ
    NdgTHDtvfNvRDQQP

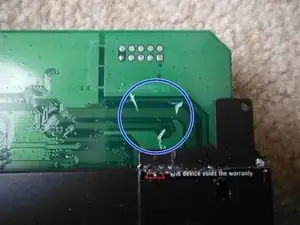

    • Lets get into the internals! First, flip the unit over and insert a small flat-head screwdriver in between the warranty sticker and the front panel and gently pry it open.

    • Beware! It may take some effort to pry the panel off. Also, be careful not to damage the motherboard, like I did.

    • This will certainly void your warranty from 2002, in case you wanted to know.

  4. dOWLDWBlSw5MdkZe
    dOWLDWBlSw5MdkZe
    o6EPQIGLeyZUh1xb
    JFyGJbRAQetGUJBJ

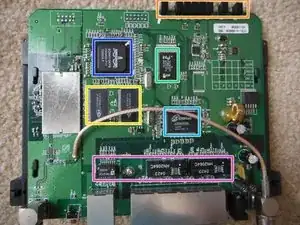

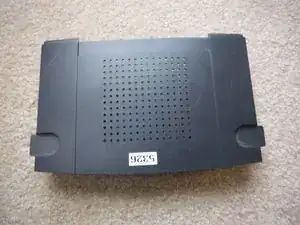

    • Now, slide the top plastic panel off and put it aside you now have a clear view of the motherboard.

    • Intel TE28F320 Flash Memory

    • Broadcom BCM4712KPB (I think it’s a modem chip)

    • Admtek ADM6996L Ethernet Controller

    • Activity LEDs

    • Issi 42S16400-6T Random Access Memory (unsure how much)

    • An assortment of other chips I couldn't find.

  5. VSQPbcghBGJoRJMS
    VSQPbcghBGJoRJMS
    lwHDBpK5MP1Kcmbt
    LdQupSCwTY6Lv1tL

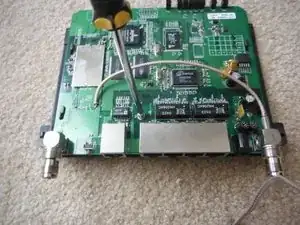

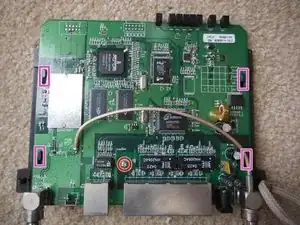

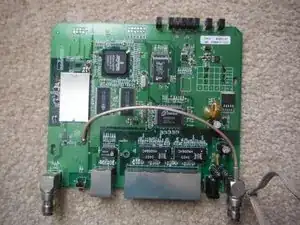

    • Time to remove the motherboard! Unscrew the single Phillips screw, slide the motherboard and then lift it out.

    • Single Phillips screw

    • Plastic slips holding the motherboard in place.

  6. 2X5QXktLplBrJTPq

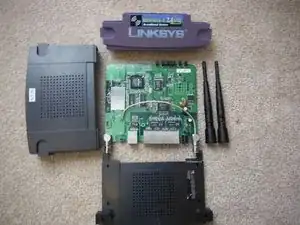

    • You're done! Thanks for sticking with me for my first teardown!

    • If you want to reassemble this, just do this guide in reverse order! (assuming you didn't break it like I did)

    OK I followed the disassemble guide as suggested ..... now the bit with

    Step 3 Front Panel Removal I did it exactly and yeah I scratch the motherboard too!!!

    But after more more looking when it was apart I found that there where screws in the front feet that held it on

    Kat -

    Hmm, mine came apart with ease after a bit of prying. About the scratched Motherboard, in hindsight I should have used a plastic spudger. I have another one of these and will look into the thing with the feet and update if needed. Thanks!

    Reed Crosby -

    Under the ruber feet on the blue plastic, there are two screws. You can insert a small screw driver into the hold on the feet, and lift it out. Then unscrew the screws instead of prying it.

    Josh -

    You’re the second person to tell me this. I never saw any sort of screws like that. I have like 2 more of them so I’ll look into adding a step if necessary. Thanks for letting me know.

    Reed Crosby -

Author

Reed Crosby

Member since: 08/12/16

4389 Reputation

2 comments

Thanks bud !!

montroze@hotmail.com -

Happened to get one of these from goodwill recently and wanted to take it apart to take a look. This was really helpful for doing that, deeply appreciate these teardown posts.

Chris Caldwell -
