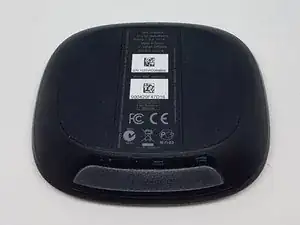

Since we didn't find any screws we expected them to be under the soft foot pads.
 -

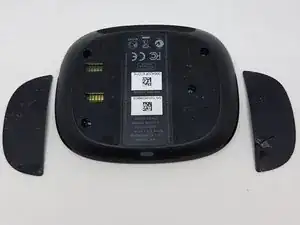

We easily removed them with a utility knife
 -

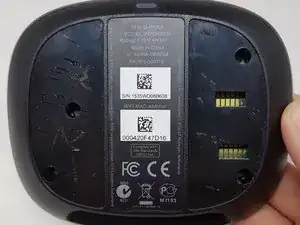

Now we can see 4 screws and 2 openings to the PCB.
 -

I wondered what they could be but my guess is that they're used to test the PCB.

 -

 -


-

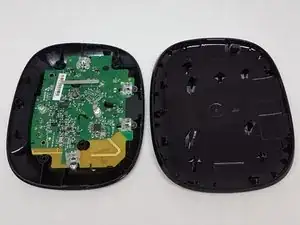

The case opens up easily when using a utility knife around the sides
 -

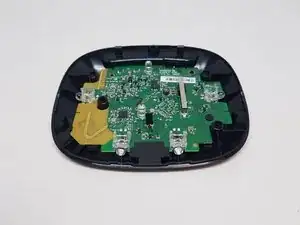

This is a cover paper to make sure the status LED doesn't shine in the rest of the casing but just to the front

 -

 -


-

Inside the top case we find a load to give the product a little more weight
 -

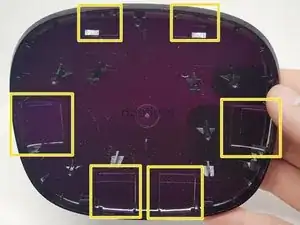

As you can see the top case is made a little thinner on the places where an IR led is present

 -

 -


-

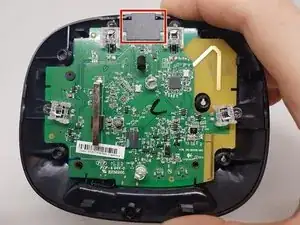

PCB was manufactured by a Chinese company called FCF
 -

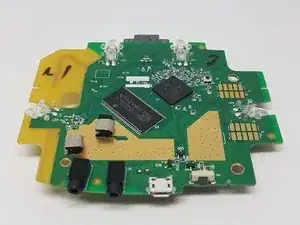

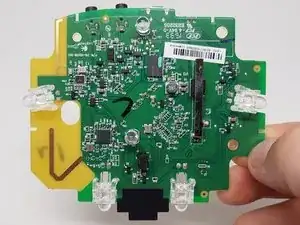

There are 6 IR leds spread over the PCB
 -

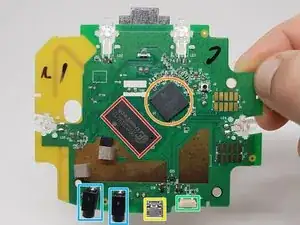

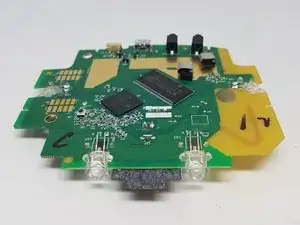

CC2544 SoC 2.4-GHz RF Transceiver and antenna
 -

CSR8811 bluetooth chip and antenna
 -

WiFi antenna from the AR9331 on the other side of the pcb
 -

MX25L12835F 128Mbits serial Flash memory

 -

 -


-

EM6AB160TSE-5G 512 Mbits SDRAM
 -

AR9331 2.4 GHz 802.11b/g/n SoC for AP and Router Platforms
 -

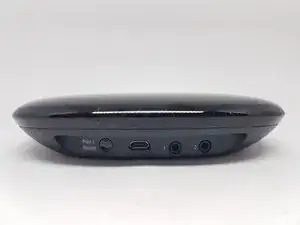

Micro USB (data and power) - Can be used to extend this hub with a Harmony Home Hub Extender
 -

Reset/Pair button
 -

2x IR mini blaster ports (2.5mm)

 -
