M6013 Capacitor Meter Teardown

Written By: Ted Hsueh
Published: 12/01/15
  • Comments: 3

M6013 Capacitor Meter Teardown

Published: 12/01/15

Teardown

Introduction

How to take apart the M6013 Capacitor Meter

  1. aCEosJADXGyR3kcD
    aCEosJADXGyR3kcD
    2gykpBcOOLZvwQhK

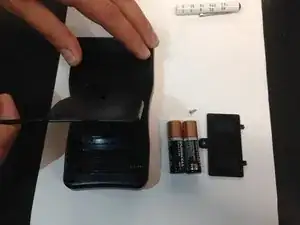

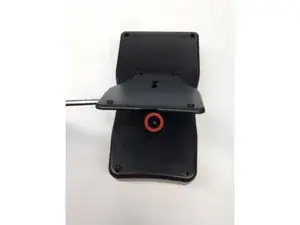

    • Remove the circled screw

    • Remove battery case and batteries

  2. 2iZUFsVi6fntKIZe
    2iZUFsVi6fntKIZe
    JqAuZeHVMqUO1tUr
    RIVr5qaPUJ5PbuCQ

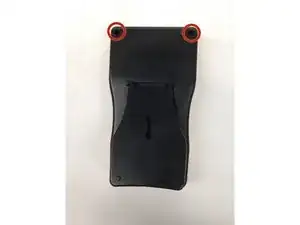

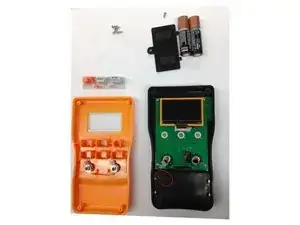

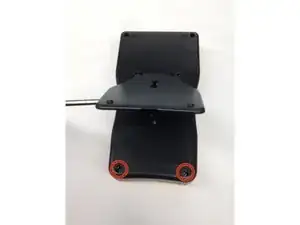

    • Remove circled screws

    • Pull case apart

    • Watch out for buttons, they will fall out easily.

  3. t3KZWb3vJbXKvoCq
    t3KZWb3vJbXKvoCq
    PU43dTOJHEd2YJpQ
    rkGgAX3k6pv6XEmK

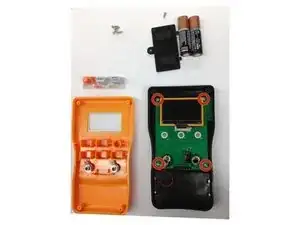

    • Remove circled screws

    • Be careful when removing the circuit board, the battery cable is still connected.

    • Unsolder the square locations either on the circuit board or the case to fully remove the circuit board

    Good morning, community, I need help to identify the value of resistors R10, R6, R7, R1 of my m6013 that broke down by mistake.

    Ing_cor -

  4. 4lOp1kmyyRZqhW3R
    4lOp1kmyyRZqhW3R
    2OyAGTlGUSwPhWLg

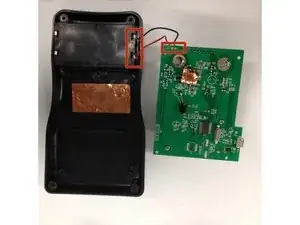

    • Location of microprocessor

  5. 3wlnsmJj3vBpaUD1
    3wlnsmJj3vBpaUD1
    nSDFl4LYCTsOAHkY

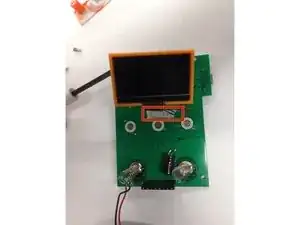

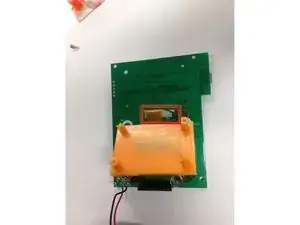

    • Remove the cable connector

    • Remove Display
