Microsoft Wireless Mobile Mouse 4000 Teardown

Written By: Austin Fox
Published: 16/11/14
  • Comments: 14

Microsoft Wireless Mobile Mouse 4000 Teardown

Published: 16/11/14

Teardown

Introduction

For this teardown you should have a small phillips screwdriver a flathead screwdriver or some other kind of prying device. A 3mm phillips screwdriver will work for all of the screws in this teardown. Note: This teardown does not include removing any components from the internal PCB.

  1. UCODBfpCNFBtaQps

    • Undo the bottom battery clip and remove any AA battery within.

    • Remove the USB receiver if stored

    • The device should look as pictured.

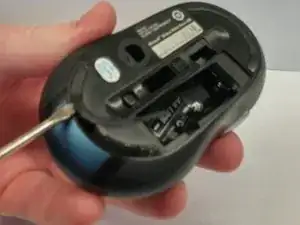

  2. bsPwVMIo3RbYYEY2
    bsPwVMIo3RbYYEY2
    tMXUlkLQUAK45YgL
    WMWUM56qSYxT5cnH

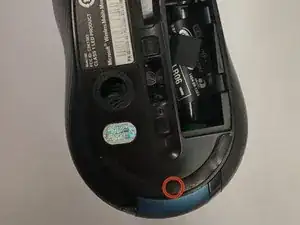

    • Using your prying device, pick at the corner of the lower rubber traction pad on the bottom of the device.

    • Pull this traction pad off to reveal the screw underneath.

    • Unscrew this middle screw using the small 3mm phillips screwdriver.

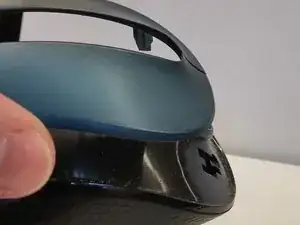

    • Carefully disconnect the top click pads.

    • Note: Moving each towards its corresponding outer edge makes this easier

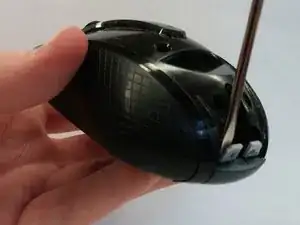

  3. RuTGlMuVCEGHQbnT
    RuTGlMuVCEGHQbnT
    RBSTocYXAZLtDOUp

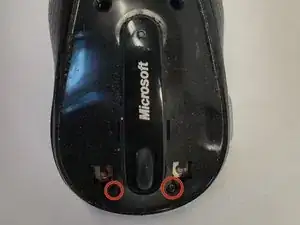

    • Unscrew the two screws on the top front of the device.

    • Using prying tool undo the back clip piece shown.

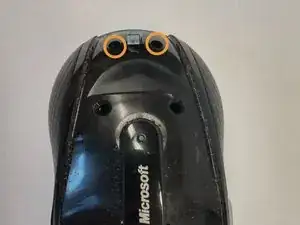

  4. UHqIeI3fXObjnPNC
    UHqIeI3fXObjnPNC
    bsG5lDIrapLB6ACF
    EWRnT2BmYZKokH1F

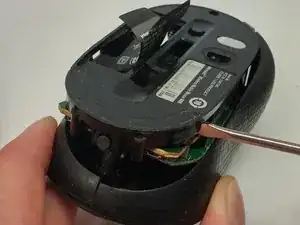

    • Remove two screws in the top back of the mouse.

    • Pry the top and bottom halves apart.

    • This takes a little prying between the outer pieces, which are connected to the top half, and the plastic bottom half.

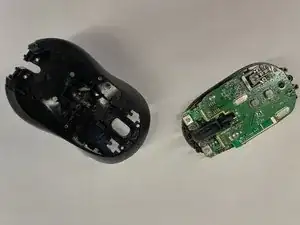

    • The mouse should now have two separate parts as shown.

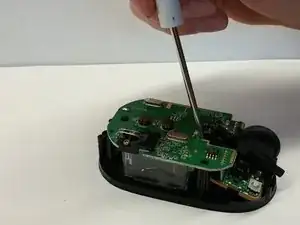

  5. oU3DLQ6GO6OCCDXO
    oU3DLQ6GO6OCCDXO
    4vPvVwZBjB3a5Zfo

    • Using prying tool press against the bottom of each side of the click wheel apparatus to cause it to snap out of place.

    • The end of the click wheel closest to the middle of the mouse is more difficult to remove and requires getting the prying tool down the gap to reach the spot where it is clipped in.

    How do I do it like what motion? I don’t want to break anything.

    Leldon Cason -

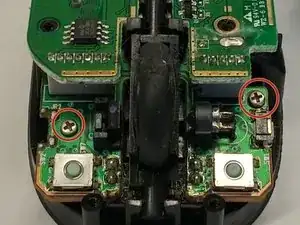

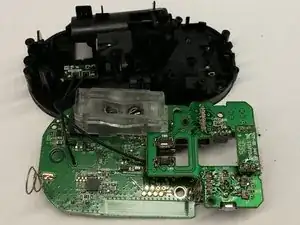

  6. IvgAZZxAKZmPvdhS
    IvgAZZxAKZmPvdhS
    PCpqcvY4CECFwuNq
    UfO3gYijLUtsBlZJ

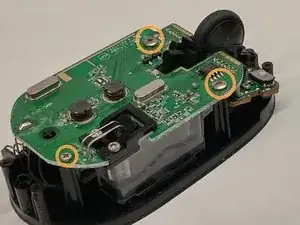

    • Remove 2 Screws from either side of the click wheel on the lower tier of the PCB.

    • Remove the 3 screws from the top tier of the PCB.

    • Do not separate the PCB from the plastic backing too fast. There is a separate small PCB screwed into the plastic backing which is connected to the main PCB with 2 wires.

    • Remove the screw holding the small PCB to the plastic backing

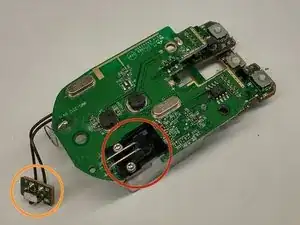

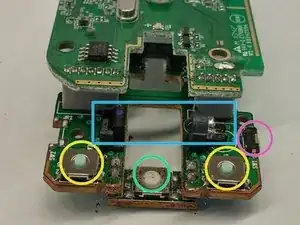

  7. pXPMSiDlXQEHgYr4
    pXPMSiDlXQEHgYr4
    UqLOkTIuGvVROQUA

    • Parts of the PCB are listed below and correspond to the colored circles on the pictures

    • LED tracking apparatus

    • Battery power receiving mechanism

    • Left and Right Click Buttons

    • Click Wheel Button

    • Scroll wheel sensing apparatus

    • Programmable Button
