Mini AirPower Wireless Charger Teardown.

Written By: Lars Jacobs
  • Comments: 0
Mini AirPower Wireless Charger Teardown.

Difficulty

Easy

Steps

6

Time Required

2 - 6 minutes

Introduction

The original Apple AirPower is delayed. But some chinese websites (like AliExpress) sell replica's of the AirPower. We where curious what is inside of it.

  1. iyRXZZAr3QhN6SVK
    iyRXZZAr3QhN6SVK
    R3hBgh1AoYWmsPBw
    rJwn2UBFe1qrxuKf

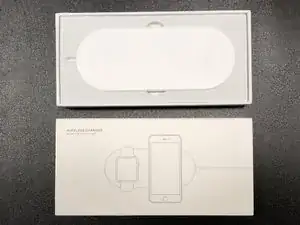

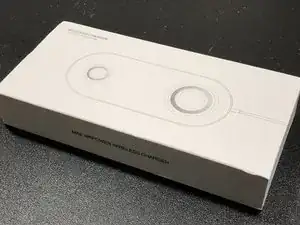

    • The charger comes in a nice carton retail box. In the box there is the charger and a instruction manual.

  2. cXoCBWbMZ2tfKfxn
    cXoCBWbMZ2tfKfxn
    slGQXGnqh2sGPFSd

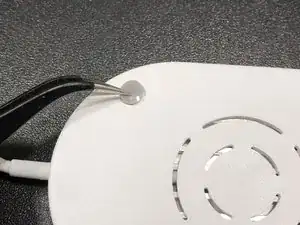

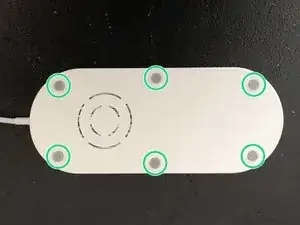

    • Remove carefully the six rubber feets from the housing with a tweezer.

  3. fVSHmT3fAwKxuABU
    fVSHmT3fAwKxuABU
    sFKp6lM5VeOOkNph
    PiHcFn4WP6RxQgNX

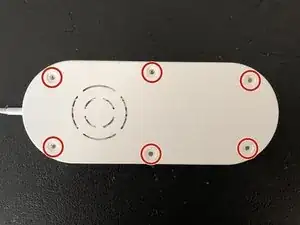

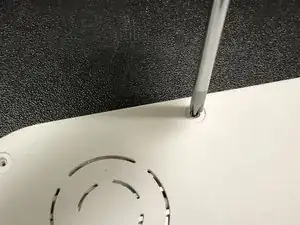

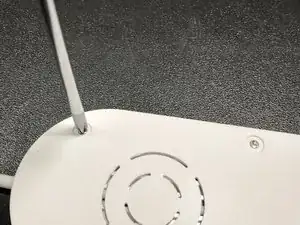

    • Remove the six 5 mm philips head screws.

  4. M1BBmyGQWUgiJgUs
    M1BBmyGQWUgiJgUs
    1Sdm6UYbAFOUopfY
    1gFRaFxQxYEtoND6

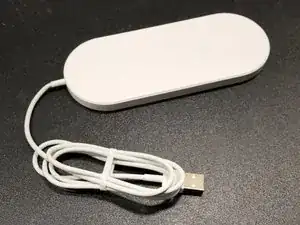

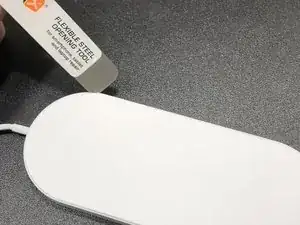

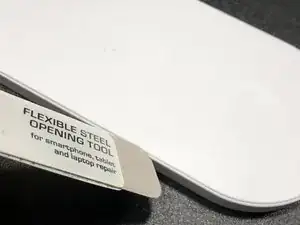

    • Turn the charger with the front up and insert a iSesamo between the gap.

  5. cdkWPqkinFqipYFv

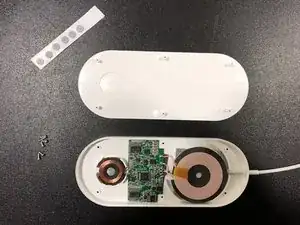

    • Separate the top from the body

  6. fLSE2pviWVLLhaD3
    fLSE2pviWVLLhaD3
    iIFPejSjuKVcFXlp

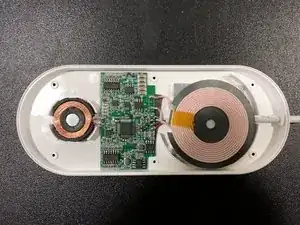

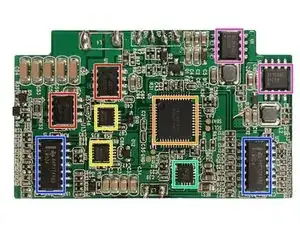

    • 4800 GA8F15 - Dual N-Channel MOSFET Datasheet

    • FD2105M FA2020 - Half Bridge Driver Datasheet

    • 84P174A63 LM324 - Quadruple Operational Amplifiers Datasheet

    • 1818AD-XNPOT - Unknown IC no data on internet found.

    • XL1583E1 81288 - Buck DC to DC Converter Datasheet

    • 1006 1820 N002 - Unknown IC no data on internet found.
