Novra S300CA Satellite Receiver Teardown

Written By: ExplodingLemur
Published: 21/03/24
  • Comments: 0

Novra S300CA Satellite Receiver Teardown

Published: 21/03/24

Teardown

Introduction

This is a quick teardown to document the ICs in the Novra S300CA DVB-S/S2 satellite receiver.

  1. NXcvHZnQK44YpNxU

    • A picture of the overall board

  2. E3kjfLHXOvP2c5SP

    • 74LCX574 Octal Flip-Flop

    • 74LCX541 Non-Inverting Octal Buffer

    • 74LCX00 Quad NAND Gate

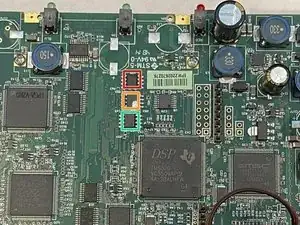

  3. uDgOGKFfe3ayfMiU

    • Atmel AT25DF021-SSHF 2Mbit SPI serial Flash

    • adesto AT25F512B-SSH 512kbit SPI serial Flash

    • Microchip 24LC64-I 64kbit I2C serial EEPROM

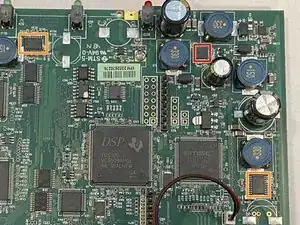

  4. 5TOFnRLkYwiW4JuV

    • A8293 single LNB supply and control voltage regulator

    • LM3100 1.5A step-down voltage regulator

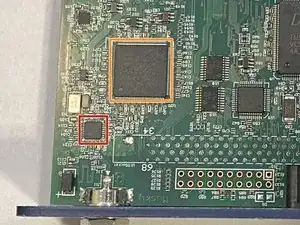

  5. qmB2RQrPS2AbcWZl

    • STV6110A 8PSK/QPSK satellite tuner

    • STV0900A multistandard dual demodulator

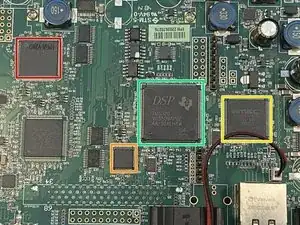

  6. xeoDVNdfDIEaHplo

    • LatticeXP series LFXP3C-3TN100C FPGA

    • LPC2106F Arm7 microcontroller

    • LAN91C113-NU 16-bit 10/100 Ethernet MAC/PHY controller

    • TI TMS320VC5509A fixed-point DSP
