Nvidia Shield Controller Teardown

Written By: 13314877
Published: 25/11/15
  • Comments: 19

Nvidia Shield Controller Teardown

Published: 25/11/15

Teardown

Introduction

  1. 2hJeEjEXmKNSMykM
    2hJeEjEXmKNSMykM
    YZiVOUnHnOWEMOxG

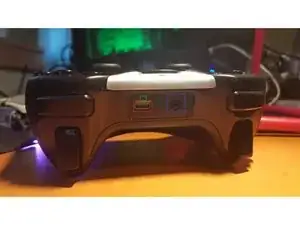

    • Nvidia Shield Normal Controller， without Display， so it's just a controller if you don't have other shield device

    • Micro-USB 2.0

    • 3.5 mm stereo headphone jack

    • Charge indicator

    • Still don't know how this controller connected to PC without cables, the controller can be connected to a Nvidia Shield through WiFi but no idea if this works with pc.

  2. bTeB2HBkmX4tqQah
    bTeB2HBkmX4tqQah
    WmnsJmK3PLsPSFnx
    XENOge4pOjD4c62D

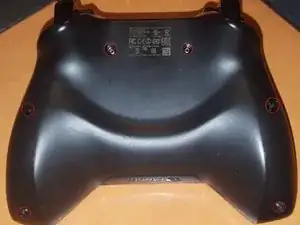

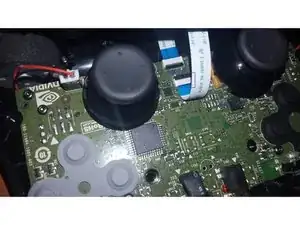

    • Flipping over the device reveals 6 screws. No hidden screws here.

    • 6*screws, use T7 screwdriver for all of screws。

    • Careful, you will need some force to open the clips holding the device together.

    • Once you are inside the device remove the two ribbon cables.

    mine was actually a T6 screwdriver required, and to get to the battery you have to remove the motherboard

    bjscott13 -

  3. vfqCtGGnyh3pyDTa
    vfqCtGGnyh3pyDTa
    pFT6omZ1PdPngVM2

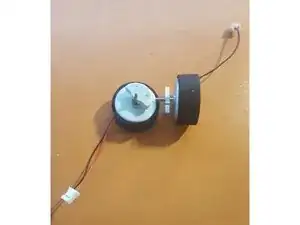

    • Remove two cable for the vibration motors and one cable for the battery.

    • There are 2 Vibration motors

    • Remove the two screws holding the logic board to the device.

    • Carefully remove the logic board.

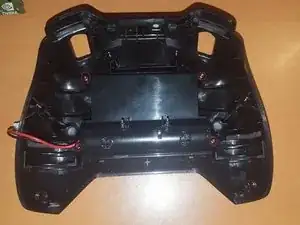

  5. PCELPt4u6XnYBSkd
    PCELPt4u6XnYBSkd
    IH1ZOKYybEuDiDYX

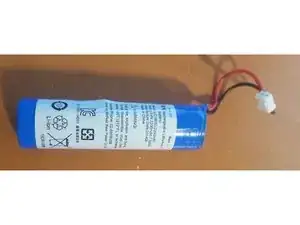

    • we can found battery part under the motherboard

    • Screw*4

    • LC18650 Lithium-ion Battery: 3.6V/2200mAh/7.92Wh

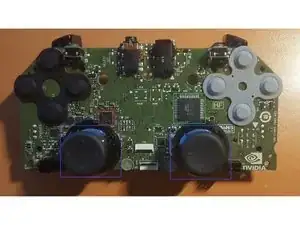

  6. ioHxGnLCdHxMEWQo
    ioHxGnLCdHxMEWQo
    Tfrmw26VVMRwvhkv

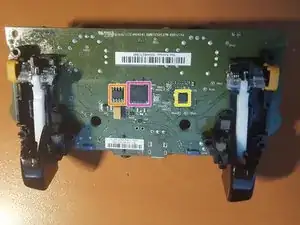

    • Main PCB - Front:

    • TLV320AIC3204 (Very Low-Power Stereo Audio CODEC)

    • Atmel ATXMEGA32A4U-AU (8-bit Microcontroller)

    • Potentiometers

    • Main PCB - Back:

    • Microchip SST25WF020A (SPI Flash 2Mbit 1.8V)

    • Ozmo2000 431-B0 (WiFi Integrated Chip)

    • ADG3 3088CP (Unknown)

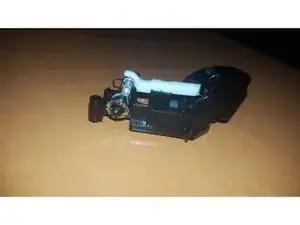

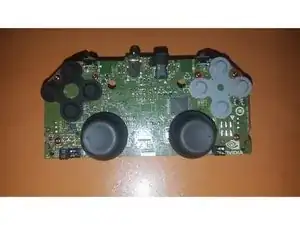

  7. G1Kvki5GOreXOYbm
    G1Kvki5GOreXOYbm
    nZOZZKeWZH1daXqt
    Q1yiP2OTqyAKBQiE

    • Remove 6*screw

    • careful，don't broke the potentiometer

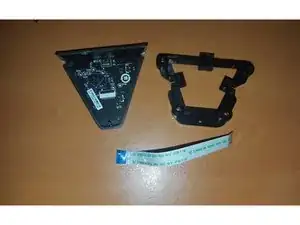

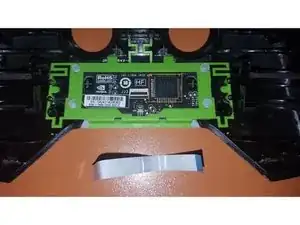

  8. aR2ex3jBftnoBuY5
    aR2ex3jBftnoBuY5
    ibKDRssv45oqoQZP
    6xw1Hbe41NZeBbIo

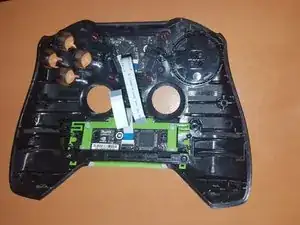

    • cover part

    • 4*screw

    • PIC32MX120F032D-I/PT (32-bit Microcontroller)

    • PIC18F26K22-I/ML (8-bit Microcontroller)
