Introduction
If you've ever been curious about the particulars of a simple incandescent flashlight, this is the guide for you.
Tools
-

                  -
            Twist the top assembly of the flashlight off by turning it counterclockwise above the rubber gasket.

-

-

                  -

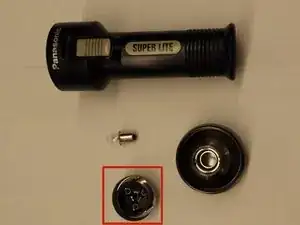

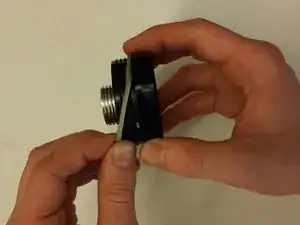

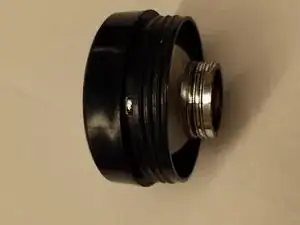

            Unscrew the bulb base by twisting counter-clockwise, taking care not to drop the bulb. Remove the bulb.

-

-

                  -
            Remove the reflector by applying pressure to one of the two protruding plastic tabs using a small flathead screwdriver while pulling on the reflector.
-

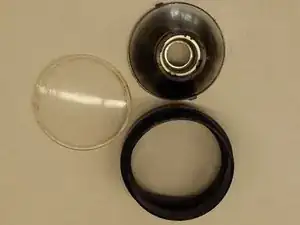

            The reflector should pop out; pull gently but firmly to avoid scattering the pieces. Remove the lens.

-

-

                  -

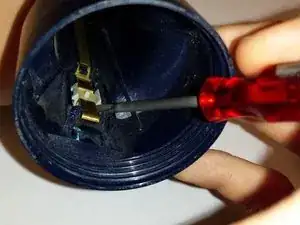

            Insert the metal screwdriver as pictured: oriented vertically, underneath the yellow plastic piece in the switch assembly, between the metal contact of the switch and the gray plastic slider flange.
-
            Pry upward to remove the yellow plastic piece; the metal contact piece may pop out with the plastic piece.
-
            Once the metal and plastic are unseated from one side, pull out the metal contact and yellow plastic piece with pliers or fingers. Remove these pieces.

-

-

                  -
            Use pliers to pinch the gray flanges of the switch slider and apply pressure to push the switch out of the flashlight body.

-
