RedOctane X-Plorer Teardown

Written By: Jackson Poer
Published: 19/11/18
  • Comments: 1

RedOctane X-Plorer Teardown

Published: 19/11/18

Teardown

Introduction

The screws could be torx or Philips head in the body and where the neck bolts to the body.

  1. AnqM2mR1ojvsqHU3

    • Remove all 16 #10-torx screws from the back side of the case.

    • Gently separate the case pieces.

    • A strong magnet helps greatly when taking out the screws.

    • Keep in mind when resembling, the case is plastic so, don't tighten the screws too tight.

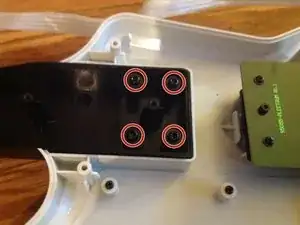

  2. UKm5mEtwFpBvFYM2

    • Unscrew the 4 #10-torx screws.

  3. TEgcFKlsxZYVPHAo

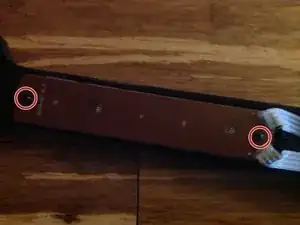

    TEgcFKlsxZYVPHAo

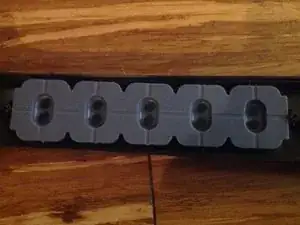

    KViTGrfXkZjerDRt

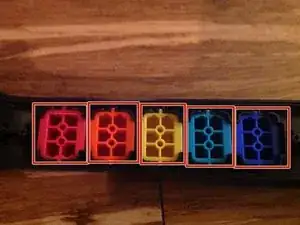

    MWUluqUQVpKTSRmn

    • Unscrew the 2 Philips head screws

    • Peel off the pads.

    • Push the colored keys out from the other side.

  4. QgN2aa1AHKxME6mP
    QgN2aa1AHKxME6mP

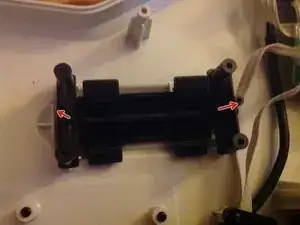

    i5ltfbkqmb3iQbsk

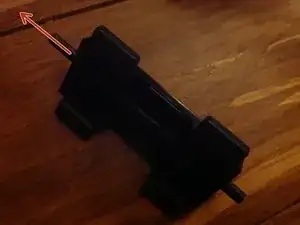

    PWqmDbiI4uFihbEk

    • Unscrew the red screws and pull the board out.

    • Then, unscrew the blue screws

    • Pull the bracket things off.

    • Pull out the pin.

  5. dMhYKJtsseag1UV5

    • Unscrew the 4 Philips head screws.

  6. VX25THxpEjfKKdJk

    • Unscrew these 2 Philips head screws.

  7. yHT6JatRw32Qx1oN
    yHT6JatRw32Qx1oN
    di2osYqCOfqHHUcK

    • Push from the other side until it comes out.

    • Take the spring off with the connector

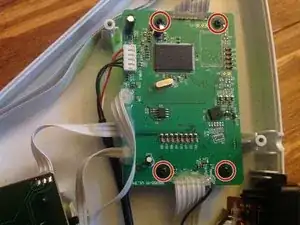

  8. iNBbD6OHF4rOfgsA
    iNBbD6OHF4rOfgsA

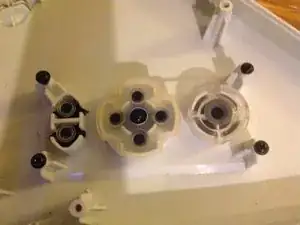

    iDMGvLUYSWLJatHh

    • Unscrew the 4 Philips head screws.

    • Peel off the contact pads.

Author

Jackson Poer

Member since: 08/04/17

683 Reputation

One comment

"unused port" is for a footpedal switch,not positive but believe all GH style guitars have one

Valden Tharbosen -
