This is a teardown guide for the auto-empty dock, model Onyx3, for Roborock's robotic vacuums.

This guide does not show how to get to the suction fan, and mostly focuses on the motherboard/PSU.

I may update it further in the future.

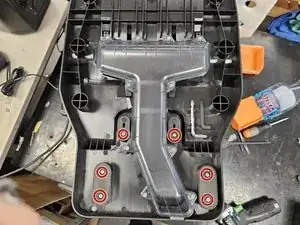

  1. X4kmNPjoIntijDKl

    • Let's begin by removing its ramp. Flip it on it's head.

    • Use a PH2 screwdriver to unscrew the screws, then take the ramp off.

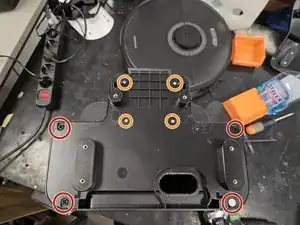

  2. DJVXbClRmLCAJblf
    DJVXbClRmLCAJblf

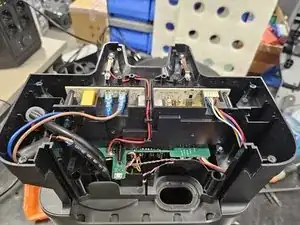

    IXpDQT1Vm2Fv5ADp

    • Remove the marked screws.

    • Circled in red are PH2.

    • Circled in orange are PH1.

    • Then pull the bottom cover off.

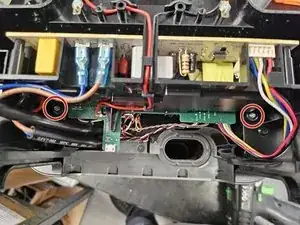

  3. 4IwaBSF1PLfyMkUm
    4IwaBSF1PLfyMkUm

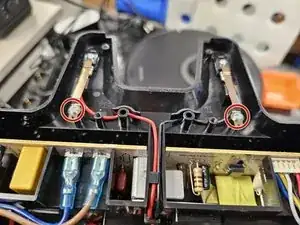

    DIxckuQsEZZSEINT

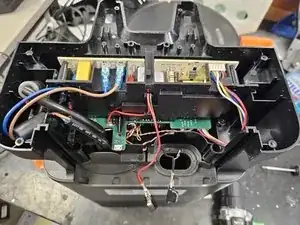

    YGY1rwQgyl1PloFS

    • Remove the marked screws.

    • All are PH1.

    • Bend the contacts back (img3) to prevent them from shorting the PSU once you pull the assembly out.

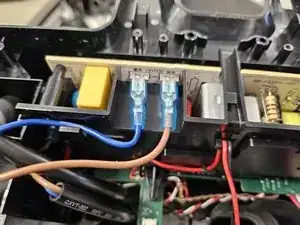

  4. k2ZA2BAAhiiAnIEY
    k2ZA2BAAhiiAnIEY
    YB4bBTS1kaBPjlKO

    • Remove the cables.

    • Use these images as reference when reassembling.

  5. djlRT43AoONEExmI
    djlRT43AoONEExmI
    vvYeqKk3rNyLTgkC

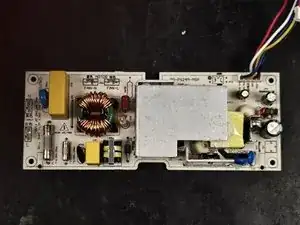

    kNDnIDDWVd4FSBBx

    • Take out the PCBA+PSU assembly.

    • When taking out the assembly, make sure to disconnect the other connectors. I forgot to take pictures of these, so just take it out carefully.

    • Remove the connecting cable between the PSU and the main PBCA.

    • Unscrew the PSU.

    • Remove the PSU.

  6. tH2KVT1DQMjZeJsb

    • I caught her.
