Remove the battery cover, battery and SIM Card.

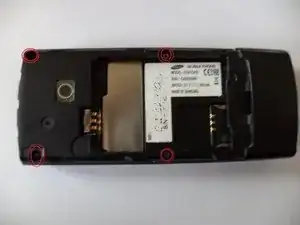

Remove these screws.

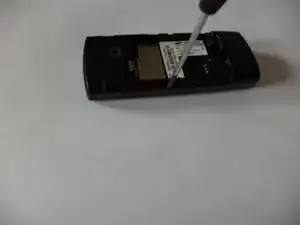

Insert yout flathead screwdriver or opening here and go around the device

Gently pry open the case.

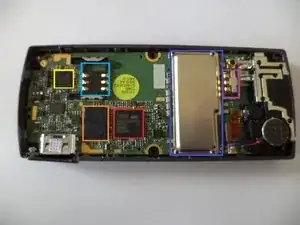

Once the case is removed you can see the PCB.

NXP OM6357EL4 ARM CPU

SPANSION Flash Memory

NXP CF50600 battery and power supply controller

SIM Card slot

EMI Shield

Battery Contacts

To get the other side of the PCB, pull up the edges of the PCB with a flathead screwdriver.

To remove the EMI shield on the other side, remove these screws

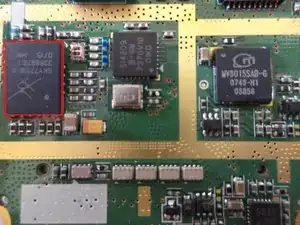

The IC's under the EMI shield.

Skyworks SKY77518 Dual-Band GSM/GPRS Module

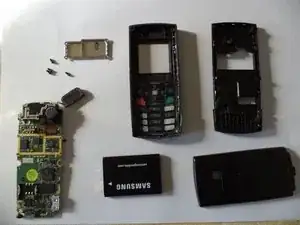

Finished!
