Sanyo CX 110 Teardown

Written By: samhnri
Published: 17/04/10
  • Comments: 1

Sanyo CX 110 Teardown

Published: 17/04/10

Teardown

Introduction

Teardown of an early 1980s Sanyo CX-110 calculator.

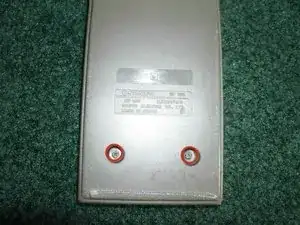

  1. SWWbkUO3KLR4a3HI
    SWWbkUO3KLR4a3HI
    4hP1i3gEOoxfYdoe

  2. UVXTascBsIU1KEvf
    UVXTascBsIU1KEvf
    nVuHSVylSqpuZDAK

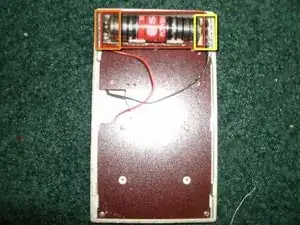

    • Now that we removed the back of the calculator, here are the battery and the back of the circuit board.

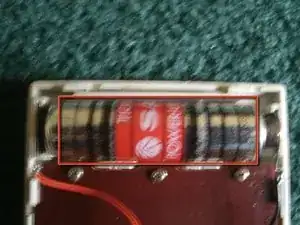

    • Sanyo Tight-Seal Power-Up Sum-3 1.5V AA battery.

    • Positive contact for the battery.

    • Negative contact for the battery.

  3. JjWBhNDXTejqhUs2

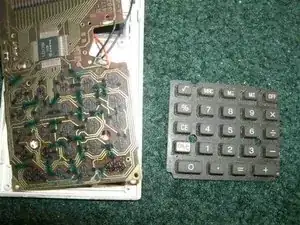

    • After removing the seven Phillips screws and flipping the circuit board, you will see the "brain" of the calculator—a Sanyo LI3120M chip.

    • The keypad has been removed from the calculator.

  4. K3vyS6tsJ3WgPHYD

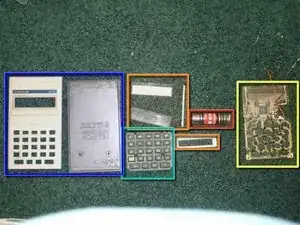

    • Now that we have completed the teardown, we can lay out all the parts of the calculator.

    • The AA battery.

    • Parts of the LCD display.

    • The circuit board.

    • The keypad containing all the buttons of the calculator.

    • The housing for the calculator.
