Texas Instruments TI-92 Teardown

Published: 16/04/10

Teardown

Introduction

Provided is an exploded view of the TI-92 calculator. All dis-assembled components are the back-side of the parts.

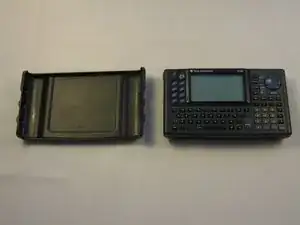

  1. ZyWbrtU1RjavJXrF

    • Remove the protective cover. This will easily unsnap from the main body.

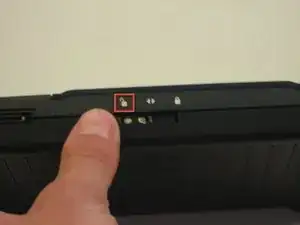

  2. mUGlYvFbTpDLXKCB

    • Slide the tab located at the top of the calculator to the unlocked position.

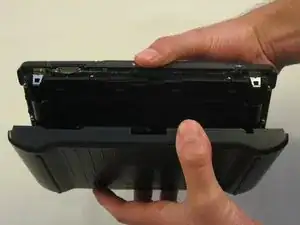

  3. yKYaIkHA6ljODyVE

    • Slide the back cover down, and then pull the back plate away from the calculator.

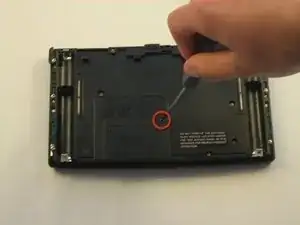

  4. TEsyiEY6ElVnsxIf

    • Unscrew the back-up battery cover. (1 screw)

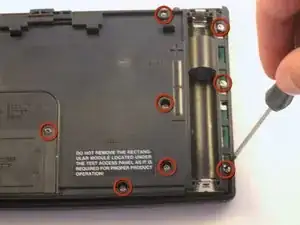

  5. UeJcoenmOvIFLstI

    • Remove all visible screws.

    • Note that there are more screws than shown in this picture (16 in total). You MUST remove them ALL.

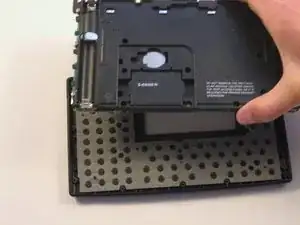

  6. PUoX1ldVFoKxXQFd

    • Keeping the front faceplate FACE DOWN on the work surface, lift the circuit board AND the plastic backing up and away from the faceplate.

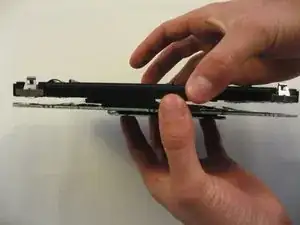

  7. uFqpMKPJuAhO3NeQ

    • These two components are loosely attached by the rectangular module just below the back-up battery.

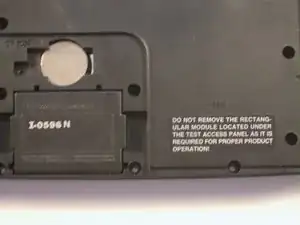

  8. vYjLMFABxoRvDQUr

    • The warning label next to this module reads "Do not remove the rectangular module located under the test access panel as it is required for proper product operation!"

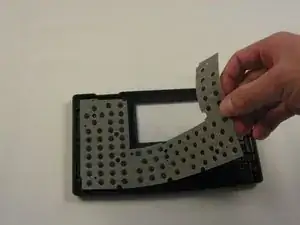

  9. WUy45L2XLdp1CfoC

    • The rubber mat in back of the faceplate may be removed, exposing all 77 individual plastic keys.

    • CAUTION: These keys are loosely held in by gravity and will fall out if the faceplate is tilted to any extreme.

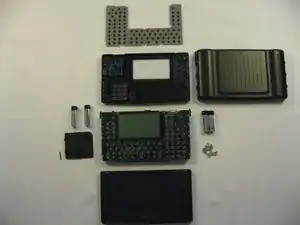

  10. gMWYSZf3ZA4nvaCv

    • The device has now been separated into as many component parts as intended by the manufacturer.
