ZTE n817 Teardown

Written By: Antioch High School
Published: 09/11/16
  • Comments: 12

ZTE n817 Teardown

Published: 09/11/16

Teardown

Introduction

I will show you how to open this Phone

Its very easy

  1. 2JY5hvKZQkHZ6l1s
    2JY5hvKZQkHZ6l1s
    dsmpquQFKFYE2Llt
    eskpIAHJt3ju4ZCK

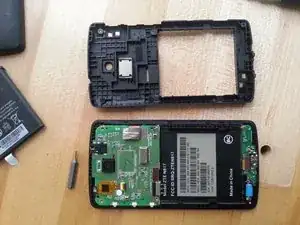

    • First put the battery away

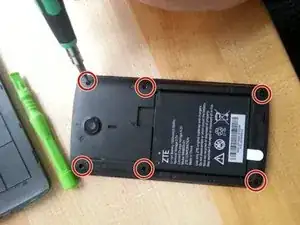

    • Then remove the screws

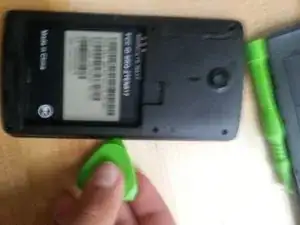

    • And now you can open it with this tool

  2. tQeGLxwOXHDAiTSa
    tQeGLxwOXHDAiTSa
    yKnWFmHkMAPMIJQb

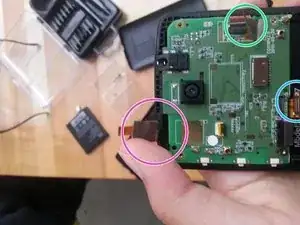

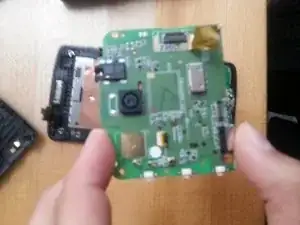

    • Now we want to open this part. Links below you pull it carefully out

    • Now pull of the tape and pull the brown metal out

    • On the right side you can open it with your hand . Fold it only out

  3. rxIEWSdfvfvc6HaO

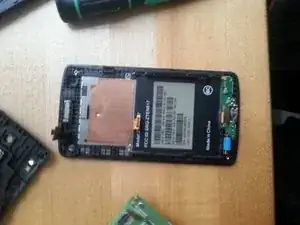

    • When you pull it out it looks like this

  4. BjaGKPXXQSCVR5T1

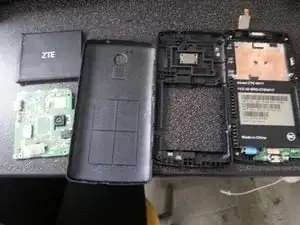

    • Now you opened the phone
