iomega LDHD250-U Teardown

Written By: Nate Pritzker
  • Comments: 0
iomega LDHD250-U Teardown

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

  1. vpQnMZnAHQpurYwg

    • Remember to power off and unplug the unit before opening it up!

    • Remove the two PH #0 Screws

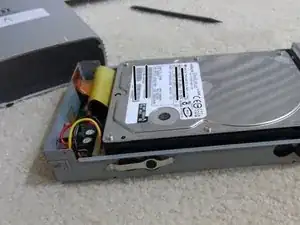

  2. aTxVUcvTtEE6eeFH
    aTxVUcvTtEE6eeFH
    SAN6jjTuIWiVeuda

    • After removing the back part of the unit, slide the front part out.

    • Remember to put aside the center part you removed

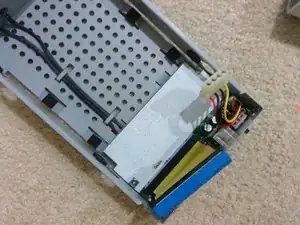

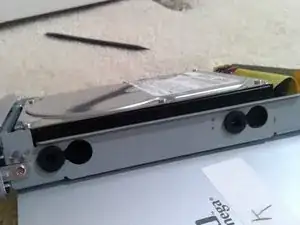

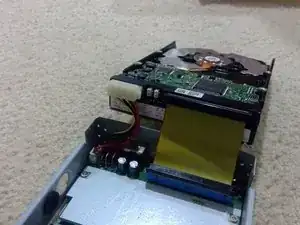

  3. GvhkbTuISNgWZLrw
    GvhkbTuISNgWZLrw
    3DZfMyTISEBkTZqW
    UZHBNmUxYx1kf4Gt

    • There are two ways to remove the Hard Drive

    • 1. Removing the 4 screws on the side of the unit

    • 2. Sliding the HDD back and then releasing it (my unit will not slide back)

    • The HDD can now be lifted out, unplugged, and replaced, upgraded, or keep it the same.

    • Pull up and unplug as the cables can break if too much force is applied

Conclusion

To reassemble your device, follow these instructions in reverse order.
