Interconnect Cables Removal

Unplug all cables and completely power down your phone.

Adhesive secures the perimeter of the rear cover to the frame.

Attach a suction handle to the bottom edge of the rear cover, as close to the edge as possible.

Pull up on the suction handle with strong, steady force to create a small gap under the rear cover.

Insert the tip of an opening pick in the gap.

Slide your opening along the bottom edge to separate the adhesive securing it.

Slide your opening pick up the left edge and along the top edge to separate the adhesive.

Slide your pick down the right edge to separate the remaining adhesive.

Use the suction handle to lift the left edge of the rear cover and swing it over the right edge, like opening the cover of a book.

Prop up the rear cover with the suction handle so you can access the ribbon cable near the top right corner.

Use a Torx Plus 3IP screwdriver to remove the five screws securing the wireless charging assembly:

Four 5.4 mm‑long screws

One 1.5 mm‑long screw

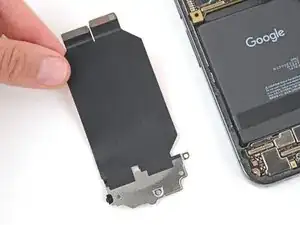

Use tweezers or your fingers to remove the wireless charging assembly.

Insert the tip of an opening pick under the left edge of the rear cover press connector and pry straight up to disconnect it.

Remove the rear cover.

Use a Torx Plus 3IP screwdriver to remove the two screws securing the cable cover:

One 2.3 mm‑long screw

One 5.4 mm‑long screw

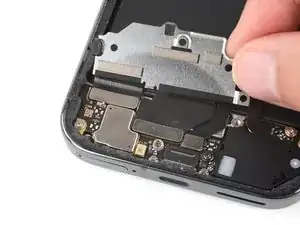

Use tweezers or your fingers to remove the cable cover.

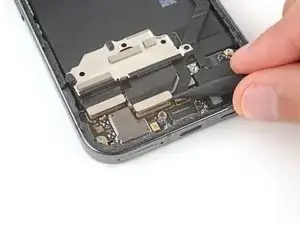

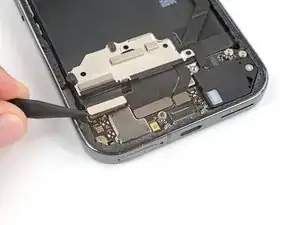

Insert the point of a spudger under the right edge of the battery press connector and pry straight up to disconnect it.

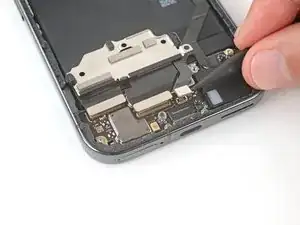

Use the flat end of a spudger to pry up and disconnect the press connector near the bottom left corner of the logic board.

Use the point of a spudger to disconnect the press connector just to the right of the previous one.

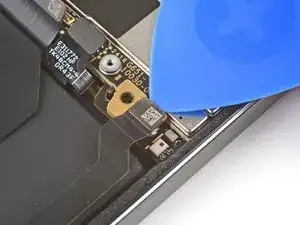

Insert the tip of an opening pick under the top edge of the press connector near the bottom right corner of the logic board.

Use the pick to pry up and disconnect the press connector.

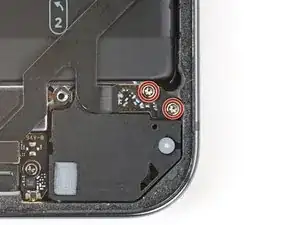

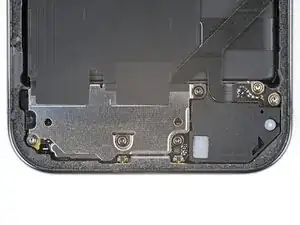

Use a Torx Plus 3IP screwdriver to remove the two 4.3 mm‑long screws securing the charging board cover.

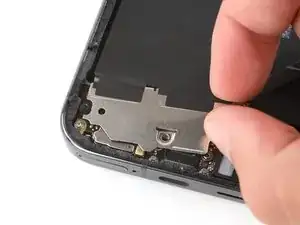

Use your fingers to pull the right edge of the charging board cover towards the top of your phone to unclip the left side of the cover.

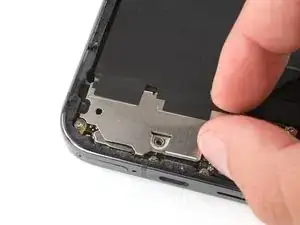

Flip the cover away from the charging board so you can access its press connectors.

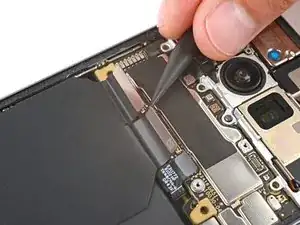

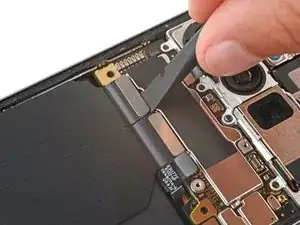

Use the point of a spudger to pry up and disconnect the three press connectors on the top edge of the charging board.

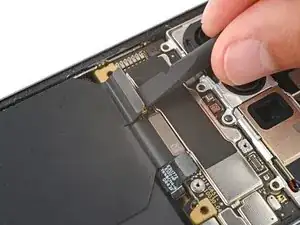

Use your fingers to remove the left interconnect cable.

Use a Torx Plus 3IP screwdriver to remove the two 2.5 mm‑long screws securing the bottom of the right interconnect cable.

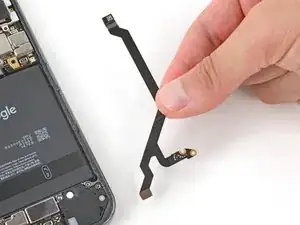

Use your fingers to remove the right interconnect cable.
