Toshiba Satellite U840W RAM Replacement

Written By: Eric
  • Comments: 8
Toshiba Satellite U840W RAM Replacement

Difficulty

Moderate

Steps

7

Time Required

5 - 7 minutes

Introduction

Is your Toshiba Satellite performance being rather slow lately? If so, these steps will show you how to replace the RAM on your motherboard.

  1. HtKGoDmKqKWDaxEs
    HtKGoDmKqKWDaxEs
    vSACY4rPPRpxyhmP

    • There are ten 5mm screws surrounding the edge of the cover.

    • A rubber cap covers the eleventh 5mm screw (in the center).

    • Remove the screws using a Phillips #00 screwdriver.

    In the introduction specify what part.

    Add how to take off rubber part

    Thomas Marlett -

    If the processor’s fan stops working and the system is overheating—follow this guide to replace it.

    Tony Aprile -

    A rubber cap covers the eleventh screw (in the center).

    Tony Aprile -

  2. c5dBjoNOjuQjRopO
    c5dBjoNOjuQjRopO
    bSKOasqgyMISyfiQ
    lEOrLMbfmjtZ2vPN

    • Pry between the casing and cover using a plastic wedge tool.

    • Use the wedge tool to move along the case & slowly pry it open.

    • The wire for the 12v charging port connects the cover to the casing.

    should show how to use the tool to pry it open

    its hard to tell what the picture is

    (maybe add another one thats further away)

    Thomas Marlett -

  3. bYAqRSfMypjXJouP
    bYAqRSfMypjXJouP
    kgepsWUxFJl3jIFO
    DoWMpBBkRJtCJUhJ

    • Disconnect this connector from the motherboard to avoid damaging the motherboard or charging port cable.

    add another picture zoomed out showing where its at

    should also say how the case comes off so you dont think you break it

    Thomas Marlett -

    To avoid damage to the 12v charging port, disconnect the connector from the motherboard.

    Tony Aprile -

  4. ymZQGJStZAbDWjJR

    • Disconnect the battery.

    • Hold down the power button for ~10 seconds to discharge any stored electricity from the motherboard.

    another zoomed out picture with circles

    how do you disconnect the battery

    which one is the battery

    is the power button on the motherboard or am i supposed to open the laptop?

    what is this picture even showing?

    Thomas Marlett -

  5. sdeP3IPNOUkNKEAi
    sdeP3IPNOUkNKEAi
    rdg4QqVqsFvnK3WM

    what is this

    i dont need all this information unless it pertains to the charger

    Thomas Marlett -

  6. SO2lESu5fTSivYt6
    SO2lESu5fTSivYt6
    Eo4ArXQvwDLMFiYa
    y5sWTwg4YpWtEeXx

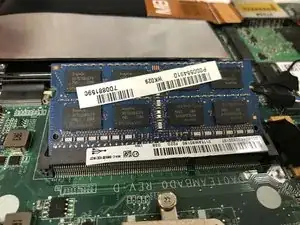

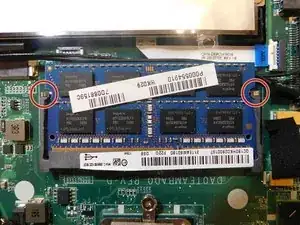

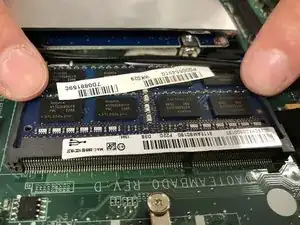

    • Push each latch arm away from the RAM card until the card lifts up, away from the motherboard.

    • The speaker wire may get in the way of the card while you are pushing the arms away. Push the wire out of the way as well.

  7. JVSBISe55NJcuARW
    JVSBISe55NJcuARW
    pa4ACW6I2mMwodZJ

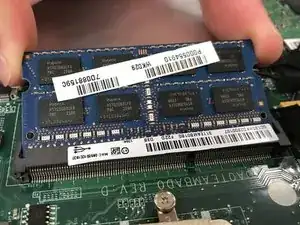

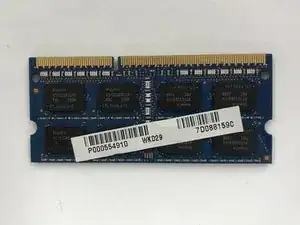

    • Remove the RAM card carefully while holding only the edges.

Conclusion

To reassemble your device, follow these instructions in reverse order.
