Many origami books begin with a description of basic origami techniques which are used to construct the models. The folds are normally described using the Yoshizawa-Randlett diagramming system. There are two main types of origami symbol, lines and arrows.^[1] The arrows show how the paper is bent or moved. Lines show various types of edges:

• A thick line for the edge of the paper
• A dashed line for a valley fold
• A dashed and dotted line for mountain folds (there may be one or two dots per dash depending on the author)
• A thin line for a previous fold
• A dotted line for a previous fold that's hidden, or sometimes a fold that's not yet made.

Paper representation

•
  Side color
•
  Crease
•
  Invisible line

Operations

•
  Valley fold
•
  Mountain fold
•
  Fold and unfold valley
•
  Fold and unfold mountain
•
  Pleat fold
•
  Pull
•
  Inside crimp fold
•
  Outside crimp fold
•
  Inside reverse fold
•
  Outside reverse fold
•

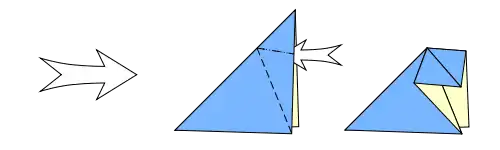

  Open
•

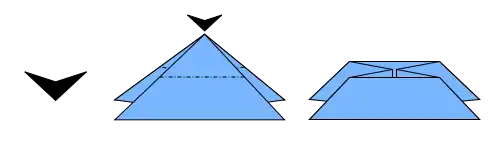

  Sink
•

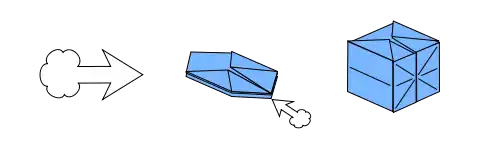

  Inflate
•

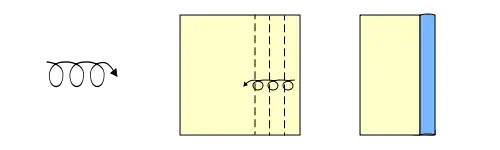

  Roll
•

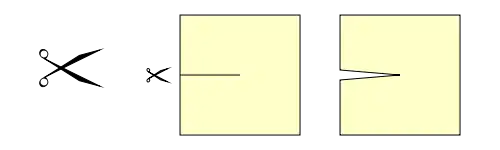

  Cut
•
  Repeat action

View

•

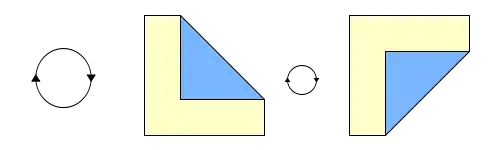

  Rotate
•

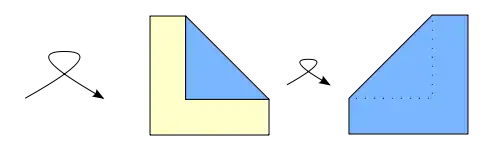

  Turn over
•

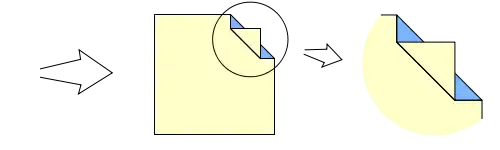

  Zoom in
•

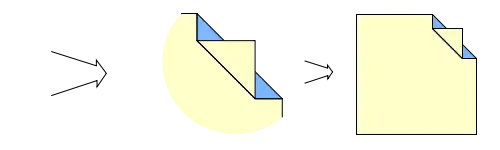

  Zoom out

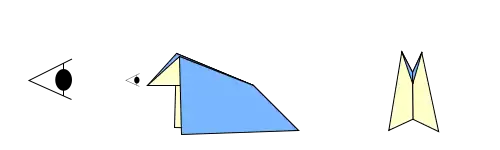

There are some symbols that have been used by some authors but are not accepted into the Yoshizawa-Randlett system. Robert Lang has introduced a “view from here” symbol that looks like an eye which has proven to be very useful, especially with his signature three-dimensional models.

•
  View from here

Several different methods have been introduced to point out to the folder to pay attention to a certain spot; these range from a letter or number to a circle, dot, or other geometric symbol.
