| Z13 | |
|---|---|
 | |
| Type | Torpedo |
| Place of origin | France |
| Service history | |
| In service | 1960[1] |
| Used by | French Navy |
| Production history | |
| Manufacturer | DCAN Toulon |
| Specifications | |
| Length | 7.125 metres[1] |
| Diameter | 550 mm |
| Warhead | TNT/Aluminium or HBX-3[1] |
| Warhead weight | 300 kg |
| Engine | electric, two countrarotating propellers |
Operational range | 5 km[1] |
| Maximum depth | >1000 m |
| Maximum speed | 25 knots (46 km/h; 29 mph)[1] |

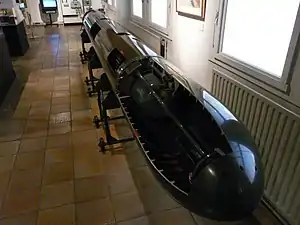

The Z-13 was an electric heavy torpedo of the French Navy based on captured German technology.[1]
It was designed to be fired from submerged submarines to target surface ships. The Z-13 was propelled by two electric motors, each driving a propeller. A Ni-Cd battery fed the engines.[1]
The payload could be detonated either on contact, or by a magnetic exploder.
Wikimedia Commons has media related to Z13 torpedo.
